TLP112
-
Suppliers
DataSheet
General Description
TLP112 Maximum Ratings
| Characteristic | Symbol | Rating | Unit | |
| LED | Forward current(Note 1) | IF | 25 | mA |
| Pulse forward current (Note 2) | IFP | 50 | mA | |
| Peak transient forward current (Note 3) | IFP | 1 | A | |
| Reverse voltage | VR | 5 | V | |
| Detector | Output current | IO | 8 | mA |
| Peak output current | VCC | -0.5-20 | V | |
| Supply voltage | VE | -0.5-20 | V | |
| Output voltage | PO |
100 |
V | |
| Output power dissipation (Note 5) | Po | 100 | mW | |
| Operating temperature range | Topr | -55~100 | °C | |
| Storage temperature range | Tstg | -55~125 | °C | |
| Lead soldering temperature (10 s) | Tsol | 260 | °C | |
| Isolation voltage (AC, 1min., RH 60%) (Note6) | BVS | 2500 | Vrms | |
(Note 1) Derate 0.8 mA / °C above 70°C.
(Note 2) 50% duty cycle,1ms pulse width.Derate 1.6mA / °C above 70°C.
(Note 3) Pulse width 1s, 300pps.
(Note 4) Derate 0.9mW / °C above 70°C.
(Note 5) Derate 2mW / °C above 70°C.

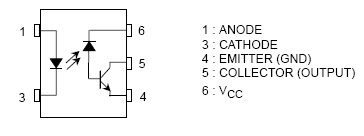

TLP112 Connection Diagram
TLP112
PDF/DataSheet Download
- Datasheet: TLP112
- File Size: 163546 KB
- Manufacturer: TOSHIBA [Toshiba Semiconductor]
- Click here to Download
