Purchase TLP180, In-stock TLP180 From SeekIC.
MFG:TOS
Part Number: TLP180
MFG: TOS
Description: The TOSHIBA mini flat coupler TLP180 is a small outline coupler, suitable for surface mount assembly.<...
- Table of contents:
TLP180
-
Suppliers
DataSheet
General Description
TLP180 General Description
The TOSHIBA mini flat coupler TLP180 is a small outline coupler, suitable for surface mount assembly.
TLP180 consist of a photo transistor, optically coupled to a gallium arsenide infrared emitting diode connected inverse parallel, and can operate directly by AC input current.
TLP180 Maximum Ratings
| Characteristics | Symbol | Rating | Unit | |
| LED | Forward current | IF | ±50 | mA |
| Forward current derating (Ta 53°C) |
IF/°C | -0.7 | mA/°C | |
| Pulse forward current (Note1) |
IFP | ±1 | A | |
| Junction temperature | Tj | 125 | °C | |
| Detector | Collector−emitter voltage | VCEO | 80 | V |
| Emitter−collector voltage | VECO | 7 | V | |
| Collector current | IC | 50 | mA | |
| Power dissipation | PC | 150 | mW | |
| Power dissipation derating (Ta 25°C) | PC / °C | -1.5 | mW / °C | |
| Junction temperature | Tj | 125 | °C | |
| Storage temperature range | Tstg | −55~125 | °C | |
| Operating temperature range | Topr | −55~100 | °C | |
| Lead soldering temperature (10 s) | Tsol | 260 | °C | |
| Total package power dissipation | PT | 200 | mW | |
| Total package power dissipation derating (Ta 25°C) | PT / °C | −2.0 | mW / °C | |
| Isolation voltage (AC, 1 min., R.H. 60%) (Note 1) |
BVS | 1500 | Vrms | |
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the ignificant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook ("Handling Precautions"/"Derating Concept and Methods") and individual reliability data (i.e. reliability test report and estimated failure rate, etc).
Note 1: Pulse width 100s,f=100Hz
Note 2: Device considered a two terminal device: Pins 1 and 3 shorted together and 4 and 6 shorted together.
TLP180 Features
• Collector−emitter voltage: 80 V (min.)
• Current transfer ratio: 50% (min.) Rank GB: 100% (min.)
• Isolation voltage: 3750Vrms (min.)
• UL recognized: UL1577, file No. E67349
• BSI approved: BS EN60065:2002, certificate no.8285 BS EN60950-1:2002, certificate no.8286
• Current transfer ratio: 50% (min.) Rank GB: 100% (min.)
• Isolation voltage: 3750Vrms (min.)
• UL recognized: UL1577, file No. E67349
• BSI approved: BS EN60065:2002, certificate no.8285 BS EN60950-1:2002, certificate no.8286
TLP180
PDF/DataSheet Download
- Datasheet: TLP180
- File Size: 368831 KB
- Manufacturer: TOSHIBA [Toshiba Semiconductor]
- Click here to Download
- ·TLP
- STMicroelectronics
- TRIPOLAR OVERVOLTAGE PROTECTION FOT TELECOM LINE
- 345950 KB
- ·TLP1000A
- TOSHIBA [Toshiba Semiconductor]
- TOSHIBA PHOTOINTERRUPTER INFRARED LED + PHOTO IC
- 430291 KB
- ·TLP1001A
- TOSHIBA [Toshiba Semiconductor]
- TOSHIBA PHOTOINTERRUPTER INFRARED LED + PHOTO IC
- 418599 KB
- ·TLP1002A
- TOSHIBA [Toshiba Semiconductor]
- INFRARED LED + PHOTO IC
- 425171 KB
- ·TLP1003A
- Toshiba
- 421349 KB
- ·TLP1004A
- TOSHIBA [Toshiba Semiconductor]
- INFRARED LED + PHOTO IC
- 207152 KB
- ·TLP1004AF
- TOSHIBA [Toshiba Semiconductor]
- INFRARED LED + PHOTO IC
- 207152 KB
- ·TLP1005A
- TOSHIBA [Toshiba Semiconductor]
- INFRARED LED + PHOTO IC
- 207152 KB
TLP180 Relative Products
.JPG)

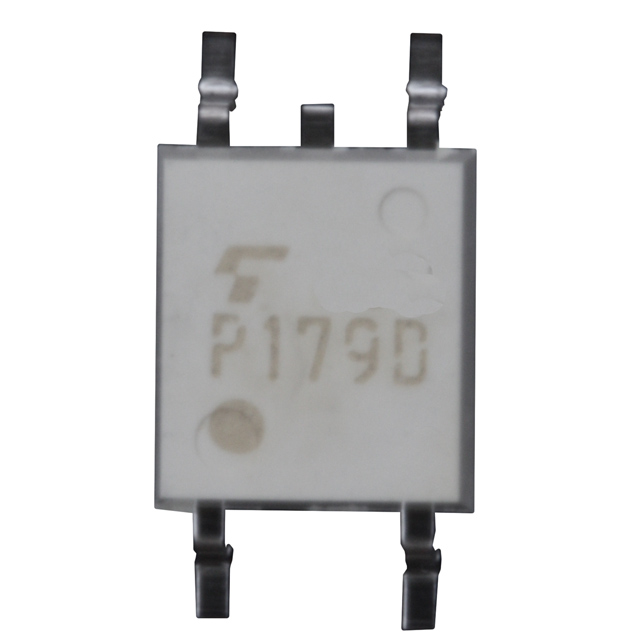

TLP179D(F)
PHOTORELAY MOSFET 50MA 4-SOP
TLP179D
The TOSHIBA TLP179D Mini-flat photorelay is a small-outlinephotorelay, suitable for surface-mount assembly. The TLP179D consistsof a GaAs infrared-emitting diode optically coupled to a photo-MOS FET and housed in a 4-pin package. Its characteristics include ...
.JPG)

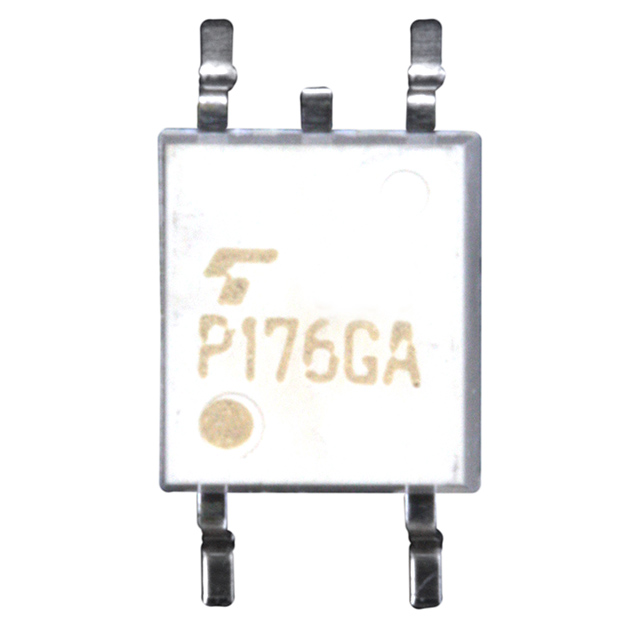

TLP176GA(F)
PHOTOCOUPLER PHOTORELAY 4-SOP
TLP176GA
The TOSHIBA TLP176GA consists of an aluminum gallium arsenide infrared emitting diode optically coupled to a photo-MOSFET in a SOP,which is suitable for surface mount assembly.The TLP176GA is suitable for the modem applications which require space savings.
TLP176G(TP,F)
PHOTOCOUPLER GAAS IRED 4-SOP
.JPG)

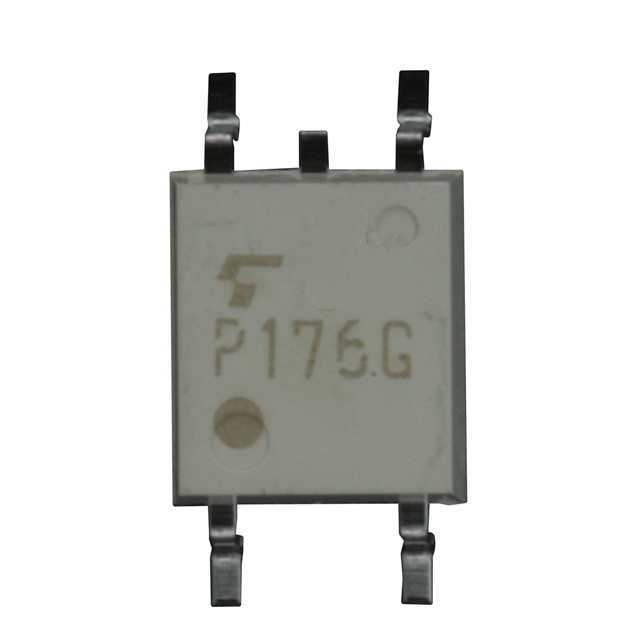

TLP176G(F)
