TLP181(F,T) suppliers, TLP181(F,T) price trend, TLP181(F,T) PDF download, circuit diagram from SeekIC

Purchase TLP181(F,T), In-stock TLP181(F,T) From SeekIC.

MFG:Toshiba Category:Isolators

Five Points

Category: Isolators

MFG: Toshiba

Descriptions: PHOTOCOUPLER TRANS-OUT 4-SMD

Price Break

1
10
100
250
500
1000
2500
5000
10000

Unit Price

.48000
.36000
.27000
.19920
.16800
.15960
.15600
.15300
.15000

Extended Price

0.48
3.60
27.00
49.80
84.00
159.60
390.00
765.00
1500.00

(All prices are in USD) Prices for reference only

PHOTOCOUPLER TRANS-OUT 4-SMD

Technical/Catalog Information	TLP181(F,T)
Vendor	Toshiba
Category	Isolators
Voltage - Isolation	3750Vrms
Input Type	DC
Output Type	Transistor
Current - Output / Channel	50mA
Voltage - Output	80V
Vce Saturation (Max)	400mV
Current Transfer Ratio (Min)	50% @ 5mA
Mounting Type	Surface Mount
Package / Case	4-SMD
Packaging	Tube
Number of Circuits	1 - Single
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TLP181 F,T TLP181F,T TLP181FT ND TLP181FTND TLP181FT

TLP
PDF/DataSheet Download

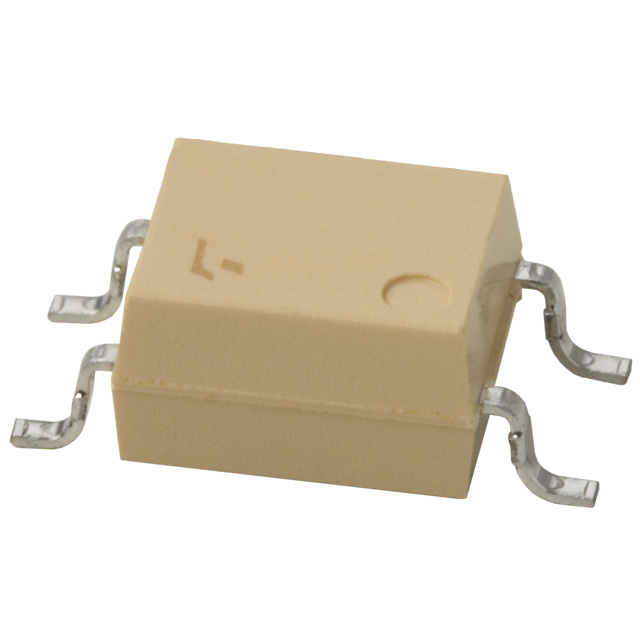

TLP181(BL-TPR,F,T)
PHOTOCOUPLER TRANS OUT 4-SMD
TLP181
The TLP181 is designed as a very small outline coupler, suitable for surface mount assembly. It consists of a photo transistor, optically coupled to a gallium arsenide infrared emitting diode in a four lead plastic DIP package.TLP181 has four features. (2) I...
