TLP283-4

Series: -
Input Type: DC
Current - Output / Channel: 50mA
Vce Saturation (Max): 400mV
Output Type: Transistor
Mounting Type: Surface Mount
Current - DC Forward (If): 50mA
Current Transfer Ratio (Min): 100% @ 1mA
Packaging: Tube
Number of Channels: 4
Package / Case: 16-SOIC (0.173", 4.40mm Width)
Current Transfer Ratio (Max): 400% @ 1mA
Voltage - Isolation: 2500Vrms
Manufacturer: Toshiba
Voltage - Output: 100V

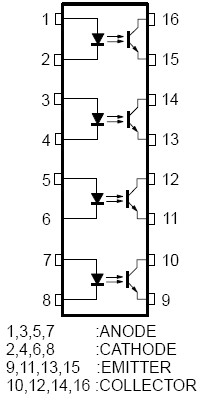

Pinout




Specifications

Characteristic		Symbol	Rating		Unit
			TLP283	TLP283−4
LED	Forward current	IF	50		mA
	Forward current derating (Ta 25°C)	IF / °C	−0.7 (Ta53°C)	−0.5 (Ta25°C)	mA / °C
	Pulse Forward Current	IFP	1		A
	Reverse voltage	VR	5		V
	Junction temperature	Tj	125		°C
Detector	Collecto-remitter voltage	VCEO	100		V
	Emitter-collector voltage	VCEO	7		V
	Collector current	IC	50		mA
	Collector Power Dissipation (1 Circuit)	ICP	150	100	mW
	Collector Power Dissipation Derating(Ta25°C) (1 Circuit)	PC	-1.5	-1.0	mW / °C
	Junction temperature	PC / °C	125		°C
Storage temperature range		Tstg	125		°C
Operating temperature range		Topr	-55~100		°C
Lead soldering temperature(10 sec.)		Tsold	-55~125		°C
Total package power dissipation		PT	260 (10s)		mW
Total package power dissipation derating (Ta25°C)		PT / °C	200	170	mW / °C
			-2.0	-1.7
Isolation voltage (AC, 1min., RH 60%)		BVS	2500(AC,1min,R.H.60%)		Vrms

Parameters:

Technical/Catalog Information	TLP283-4
Vendor	Toshiba
Category	Isolators
Voltage - Isolation	2500Vrms
Input Type	DC
Output Type	Transistor
Current - Output / Channel	50mA
Voltage - Output	100V
Vce Saturation (Max)	400mV
Current Transfer Ratio (Min)	100% @ 1mA
Mounting Type	Surface Mount
Package / Case	16-SOP
Packaging	-
Number of Circuits	4 - Quad
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	TLP283 4 TLP2834
