Purchase TLP3241, In-stock TLP3241 From SeekIC.
Package Cooled:SS0P4
Part Number: TLP3241
Package Cooled: SS0P4
Description: The TOSHIBA TLP3241 is a super small-outline photorelay, suitable for surface-mount assembly. ...
- Table of contents:
TLP3241
-
Suppliers
DataSheet
General Description
TLP3241 General Description
The TOSHIBA TLP3241 is a super small-outline photorelay, suitable for surface-mount assembly.
The TLP3241 consists of a GaAℓAs infrared-emitting diode optically coupled to a photo-MOS FET and housed in a 4-pin package. Its characteristics also include low OFF-state current and low output pin capacitance, enabling it to be used in high-frequency measuring instruments.
TLP3241 Maximum Ratings
|
CHARACTERISTIC |
SYMBOL |
RATING |
UNIT | |
|
LED |
Forward Current |
IF |
30 |
mA |
| Forward current derating (Ta85) |
IF/Ta |
-0.3 |
mA | |
| Peak transient forward current (Note1) |
IFPT |
5 |
A | |
| Reverse Voltage |
VR |
125 |
V | |
|
DETECTOR |
Off-State Output Terminal Voltage | VDRM |
40 |
V |
| On-State RMS Current | IT(RMS) |
140 |
mA | |
| On-State Current Derating (Ta25) |
IT/ |
-1.4 |
mA / | |
| Junction Temperature |
Tj |
125 |
||
| Storage Temperature Range |
Tstg |
-40~125 |
||
| Operating Temperature Range |
Topr |
-20to100 |
||
| Lead Soldering Temperature(10s) |
Tsol |
260 |
||
| Isolation voltage (AC,1min.,R.H.60%,Ta=25) Note2 |
BVS |
1500 |
Vrms | |
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook ("Handling Precautions"/"Derating Concept and Methods") and individual reliability data (i.e. reliability test report and estimated failure rate, etc).
(Note 1): Device considered a two-terminal device: Pins 1 and 2 shorted together, and pins 3 and 4 shorted together.
TLP3241 Features
• 4 pin SSOP (SSOP4) : 1.8 mm high, 1.27 mm pitch
• 1-Form-A
• Peak off-state voltage : 40 V (Min.)
• Trigger LED current : 3 mA (Max.)
• On-state current : 140 mA (Max.)
• On-state resistance : 10(Max.), 7(Typ.)
• Output capacitance : 1.3 pF (Max.), 0.7 pF (Typ.)
• Isolation voltage : 1500 Vrms (Min.)
• 1-Form-A
• Peak off-state voltage : 40 V (Min.)
• Trigger LED current : 3 mA (Max.)
• On-state current : 140 mA (Max.)
• On-state resistance : 10(Max.), 7(Typ.)
• Output capacitance : 1.3 pF (Max.), 0.7 pF (Typ.)
• Isolation voltage : 1500 Vrms (Min.)
TLP3241 Connection Diagram
TLP
PDF/DataSheet Download
- Datasheet: TLP
- File Size: 345950 KB
- Manufacturer: STMicroelectronics
- Click here to Download
- ·TLP1000A
- TOSHIBA [Toshiba Semiconductor]
- TOSHIBA PHOTOINTERRUPTER INFRARED LED + PHOTO IC
- 430291 KB
- ·TLP1001A
- TOSHIBA [Toshiba Semiconductor]
- TOSHIBA PHOTOINTERRUPTER INFRARED LED + PHOTO IC
- 418599 KB
- ·TLP1002A
- TOSHIBA [Toshiba Semiconductor]
- INFRARED LED + PHOTO IC
- 425171 KB
- ·TLP1003A
- Toshiba
- 421349 KB
- ·TLP1004A
- TOSHIBA [Toshiba Semiconductor]
- INFRARED LED + PHOTO IC
- 207152 KB
- ·TLP1004AF
- TOSHIBA [Toshiba Semiconductor]
- INFRARED LED + PHOTO IC
- 207152 KB
- ·TLP1005A
- TOSHIBA [Toshiba Semiconductor]
- INFRARED LED + PHOTO IC
- 207152 KB
- ·TLP1005AF
- TOSHIBA [Toshiba Semiconductor]
- INFRARED LED + PHOTO IC
- 207152 KB
TLP3241 Relative Products
.JPG)

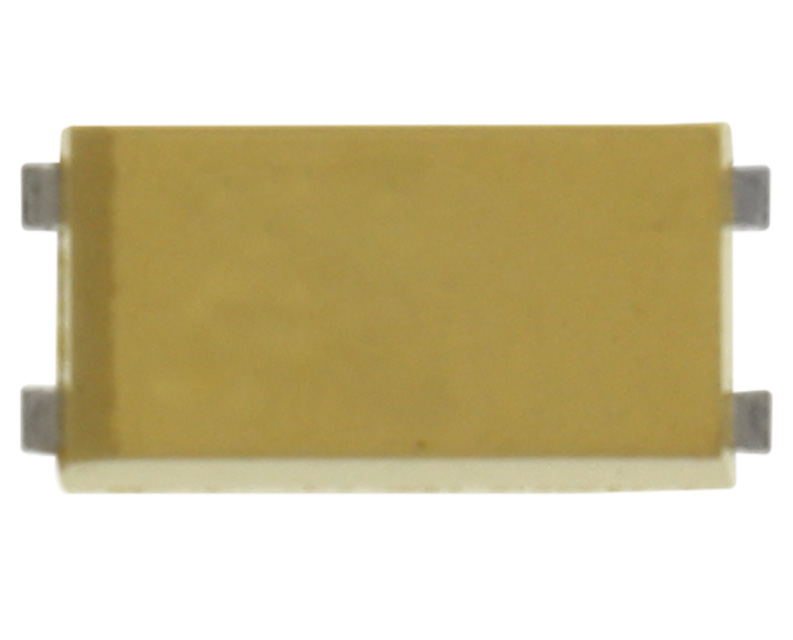

TLP3240(TP15,F)
