General Description
TLP350 Maximum Ratings
| Characteristic | Symbol | Rating | Unit | |
| LED | Forward current | IF | 20 | mA |
| Forward current derating (Ta 85°C) | IF / °C | -0.54 | mA / °C | |
| Peakforwardcurrent(100s pulse,100pps) | IFP | 1 | A | |
| Reverse voltage | VR | 5 | V | |
| Junction temperature | Tj | 125 | °C | |
| Detector | "H" peak output current (Note 2) | VDRM | -2.0 | V |
| "L" peak output current (Note 2) | VRRM | 2.0 | V | |
| Output voltage (Note 3) | VO | 35 | V | |
| Supply voltage (Note 3) | VCC | 35 | V | |
| Junction temperature | Tj | 125 | °C | |
| Operating frequency (Note 4) | f | kHz | ||
| Storage temperature range | Tstg | -55~125 | °C | |
| Operating temperature range | Topr | -40~100 | °C | |
| Lead soldering temperature (10 s)(Note 5) | Tsol | 260 | °C | |
| Isolation voltage (AC, 1min., RH 60%) (Note6) | BVS | 3750 | Vrms | |
Note 1: Pulse width PW 1 s, 300 pps
Note 2: Exponential waveform pulse width PW s, f kHz
Note 3: Ta 100 °C
Note 4: Exponential waveform IOPH A ( s), IOPL + A ( s),Ta = °C
Note 5: It is 2 mm or more from a lead root.
Note 6: Device considerd a two terminal device: pins 1, 2, 3 and 4 shortedtogether, and pins 5, 6, 7 and 8 shorted
together.
Note 7: A ceramic capacitor(0.1 F) should be connected from pin 8 to pin 5 to stabilize the operation of the high
gain linear amplifier. Failure to provide the bypassing may impair the switching property.
The total lead length between capacitor and coupler should not exceed 1 cm.

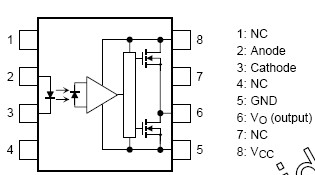

TLP350 Connection Diagram
