TLP541G

PinoutSpecifications Characteristic Symbol Rating Unit LED Forward current IF(RMS) 50 mA Forward current derating (Ta 25°C) IF / °C -0.7 mA / °C Peakforwardcurrent(100s pulse,100pps) IFP 1 A Reverse voltage VR 5 V Junction temperature Tj 125 °C Detector ...

product image

TLP541G Picture
SeekIC No. : 004521782 Detail

TLP541G: PinoutSpecifications Characteristic Symbol Rating Unit LED Forward current IF(RMS) 50 mA Forward current derating (Ta 25°C) IF / °C -0.7 mA / °C Peakforwardcurrent(100s puls...

floor Price/Ceiling Price

Part Number:
TLP541G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

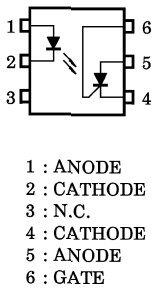

  Connection Diagram


Specifications

Characteristic Symbol Rating Unit
LED Forward current IF(RMS) 50 mA
Forward current derating (Ta 25°C) IF / °C -0.7 mA / °C
Peakforwardcurrent(100s pulse,100pps) IFP 1 A
Reverse voltage VR 5 V
Junction temperature Tj 125 °C
Detector Peak forward voltage (RGK = 27k) VDRM 400 V
Peak reverse voltage (RGK = 27k) VRRM 400 V
On-state current IT (RMS) 150 mA
On-state current derating (Ta 25°C) IT / °C -2.0 mA / °C
Peak one cycle surge current ITSM 2 A
Peak reverse gate voltage VGM

-5

V
Junction temperature Tj 100 °C
Storage temperature range Tstg -55~125 °C
Operating temperature range Topr -30~100 °C
Lead soldering temperature (10 s) Tsol 260 °C
Isolation voltage (AC, 1min., RH 60%) (Note) BVS 2500 Vrms
