Product Details

Description



Pinout

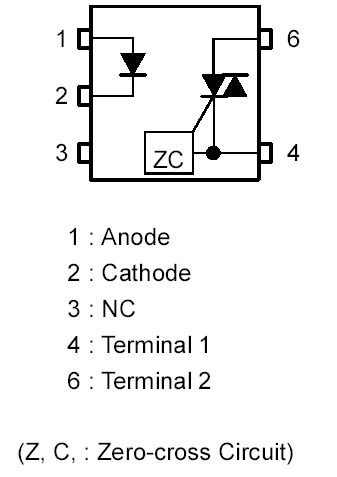

Connection Diagram


Specifications

Characteristic
Symbol
Rating
Unit
        LED

Forwardcurrent
IF
30
mA
Forward current derating (Ta = 25)
IF /
_0.3
mA /
Peak forward current (100µs pulse, 100pps)
IFP
1
A
Reverse voltage
VR
5
V
Junction temperature
Tj
125
       Detector

Off_state output terminal voltage
VDRM
600
V

On_stateRMScurrent
Ta = 25

IT(RMS)

100

mA

Ta = 70
50
On_state current derating (Ta = 25°C)
IT /
_1.1
mA /
Peak on_state current (100µs pulse, 120pps)
ITP
2
A
Peak nonrepetitive surge current (PW = 10ms, DC = 10%)
ITSM
1.2
A
Junction temperature
Tj
110
Storage temperature range
Tstg
-55~150
Operating temperature range
Topr
-40~100
Lead soldering temperature (10sec.)
Tsold
260
Isolation voltage (AC, 1min., R.H. 60%)        (Note 1)
BVS
5000
Vrms
