Part Number: TLP759









Description: The TLP759 is designed as toshiba photocoupler which consists of a GaAAs high-output light emitting di...


Urgent Purchase

TLP759 General Description


The TLP759 is designed as toshiba photocoupler which consists of a GaAAs high-output light emitting diode and high speed detector of one chip photo diode transistor.

It has six features. (1)Isolation voltage would be min 5000Vrms. (2)Switching speed is typ 0.2us for tpHL and ty 0.3us for tpLH. (3)TTL compatible. (4)UL recognized UL1577, file No.E67349. (5)Maximum operating insulation voltage 890Vpk. (6)Highest permissible over voltage would be 6000Vpk. Those are all the main features.

Some absolute maximum ratings have been concluded into several points as follow. (1)Its forward current would be 25mA. (2)Its pulse forward current would be 50mA. (3)Reverse voltage would be 5V. (4)Its peak transient forward current would be 1A. (5)Its diode power dissipation would be 45mW. (6)Its output current would be 8mA. (7)Its peak output current would be 16mA. (8)Its output voltage would be from -0.5V to 20V. (9)Its supply voltage would be from -0.5V to 30V. (10)Its output power dissipation would be 100mW. (11)Its operating temperature range would be from -55°C to 100°C. (12)Its storage temperature range would be from -55°C to 125°C. (13)Its lead solder temperature would be 260°C. (14)Its isolation voltage (AC 1min, RH<=60%, Ta=25°C) would be 2500V.

Also some electrical characteristics are concluded as follow. (1)Its forward voltage would be typ 1.65V and max 1.85V. (2)Its reverse current would be max 10uA. (3)Its capacitance between terminal would be typ 45pF. (4)Its high level output current would be typ 3uA and max 500uA. (5)Its supply voltage would be min 30V. (6)Its output voltage would be min 20V.

It should be noted that the information contained herein is presented only as a guide for the applications of toshiba products. No responsibility is assumed by toshiba sorporation for any infringements of implication or otherwise under any intellectual property or other rights of toshiba corporation or others. And so on. If you have any question or suggestion or want to know more information please contact us for details. Thank you!

TLP759 datasheet

TLP759
PDF/DataSheet Download

Find TLP759 Suppliers

  • ·TLP
  • STMicroelectronics
  • TRIPOLAR OVERVOLTAGE PROTECTION FOT TELECOM LINE
  • 345950 KB
  • TLP Datasheet Download
  • ·TLP1000A
  • TOSHIBA [Toshiba Semiconductor]
  • TOSHIBA PHOTOINTERRUPTER INFRARED LED + PHOTO IC
  • 430291 KB
  • TLP1000A Datasheet Download
  • ·TLP1001A
  • TOSHIBA [Toshiba Semiconductor]
  • TOSHIBA PHOTOINTERRUPTER INFRARED LED + PHOTO IC
  • 418599 KB
  • TLP1001A Datasheet Download
  • ·TLP1002A
  • TOSHIBA [Toshiba Semiconductor]
  • INFRARED LED + PHOTO IC
  • 425171 KB
  • TLP1002A Datasheet Download
  • ·TLP1003A
  • Toshiba
  •
  • 421349 KB
  • TLP1003A Datasheet Download
  • ·TLP1004A
  • TOSHIBA [Toshiba Semiconductor]
  • INFRARED LED + PHOTO IC
  • 207152 KB
  • TLP1004A Datasheet Download
  • ·TLP1004AF
  • TOSHIBA [Toshiba Semiconductor]
  • INFRARED LED + PHOTO IC
  • 207152 KB
  • TLP1004AF Datasheet Download
  • ·TLP1005A
  • TOSHIBA [Toshiba Semiconductor]
  • INFRARED LED + PHOTO IC
  • 207152 KB
  • TLP1005A Datasheet Download

Related Part Number

    TLP759 Relative Products

    • TLP751

      TLP751

      The TOSHIBA TLP751 consists of GaAℓAs high−output light emitting diode and a high speed detector of one chip photo diode− transistor. This unit is 8−lead DIP.TLP751 has internal base connection. This base pin should be used for analog...

    • TLP750

      TLP750

      The TOSHIBA TLP750 consists of GaAℓAs high−output light emitting diode and a high speed detector of one chip photo diode−transistor.This unit is 8−lead DIP.TLP750 has no internal base connection, and is suitable for application in noi...

    • TLP748J(TP1,F)

      TLP748J(TP1,F)

      IC PHOTOCOUPLER SCR-OUT 6-SMT

    • TLP748J(F)

      TLP748J(F)

      IC PHOTOCOUPLER SCR-OUT 6-DIP

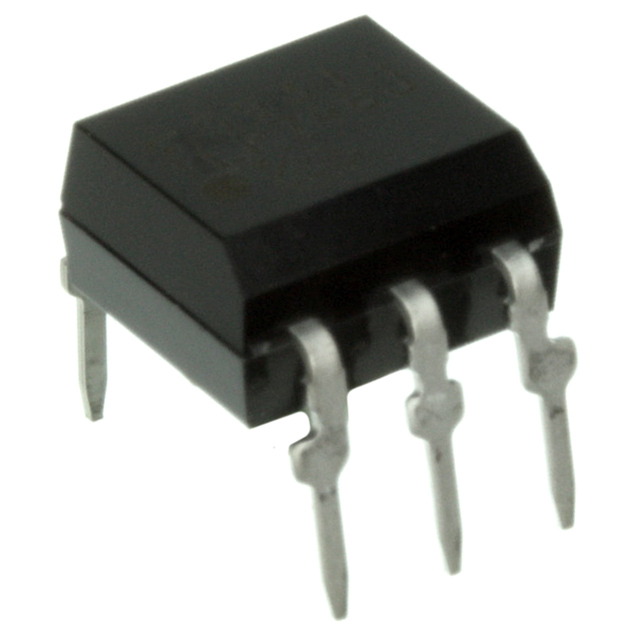

    • TLP748J(D4,F)
