TLP759(IGM)
-
Suppliers
DataSheet
General Description
TLP759(IGM) Maximum Ratings
|
Characteristic |
Symbol |
Rating |
Unit | |
|
D |
Forward current (Note 2) |
IF |
25 |
mA |
| Pulse forward current (Note 3) |
IFP |
50 |
mA | |
| Peak transient forward current (Note 4) |
IFPT |
1 |
A | |
| Reverse voltage |
VR |
5 |
V | |
| Diode power dissipation (Note 5) |
PD |
45 |
mW | |
|
r |
Output current |
IO |
8 |
mA |
| Peak output current |
IOP |
16 |
mA | |
| Output voltage |
VO |
-0.5~20 |
V | |
| supply voltage |
VCC |
-0.5~30 |
V | |
| Output power dissipation (Note 6) |
PO |
100 |
mW | |
| Operating temperature range |
Topr |
-55~100 |
||
| Storage temperature range |
Tstg |
-55~125 |
||
| Lead solder temperature(10s) (Note 7) |
Tsol |
260 |
||
| Isolation voltage(AC,1min.,R.H.60%,Ta=25°C) (Note 8) |
BVS |
5000 |
Vrms | |

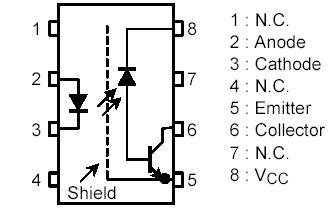

TLP759(IGM) Connection Diagram
