Purchase TLS2230, In-stock TLS2230 From SeekIC.
Part Number: TLS2230
Description: The TLS2230 is a servo-combination predriver designed for use in hard-disk-drive applications. When co...
- Table of contents:
TLS2230
-
Suppliers
DataSheet
General Description
TLS2230 General Description
The TLS2230 is a servo-combination predriver designed for use in hard-disk-drive applications. When combined with a power driver such as the TPIC150x, the TLS2230 can drive a voice-coil motor (VCM) and a spindle motor. Figure 1 is a functional block diagram of the servo-combination predriver.
TLS2230 Maximum Ratings
Supply voltage: V12, PV12 (see Note 1) ................................................15 V
V5D, V5A (see Note 1) ...................................................7 V
Charge-pump output voltage 30 V
Power dissipation, TA = 70°C ................................................................1 W
Operating virtual junction temperature, TJ ........................................3150
Storage temperature range, Tstg ..........................................55to 125
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds........ 250
Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device.
These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: All voltage values are with respect to GND.
TLS2230 Features
` Voice-Coil Motor (VCM) Predriver
Pulse-Width Modulated (PWM) or Linear Input Control
Transconductance Amplifier With Class
AB Output (When Used With TPIC150x Drivers)
Summing Amplifier
Current-Sense Amplifier
Retract Function on Power Loss
` Spindle-Motor Predriver
PWM Start and PWM Current Limit
Advance Terminal Signals Commutation
Timing to On-Chip Sequencer During Start Mode
Current-Sense Comparator
Low-Noise Phase-Locked Loop Performs
Commutation Timing During Run Mode
PWM or Linear Run Mode
Low-Side Driver Transconductance
Amplifier for Linear Run Mode
Dynamic Brake
Power-Down Brake After Delay
Soft Switching or Limited dv/dt Reduces
Acoustic Noise in Linear Run Mode
` Support Functions
Voltage Monitor (Based on 5-V and 12-V Supplies)
Low-Voltage Brake
Charge Pump (25 V) for Driving
N-Channel DMOS H-Bridge Drivers
Pulse-Width Modulated (PWM) or Linear Input Control
Transconductance Amplifier With Class
AB Output (When Used With TPIC150x Drivers)
Summing Amplifier
Current-Sense Amplifier
Retract Function on Power Loss
` Spindle-Motor Predriver
PWM Start and PWM Current Limit
Advance Terminal Signals Commutation
Timing to On-Chip Sequencer During Start Mode
Current-Sense Comparator
Low-Noise Phase-Locked Loop Performs
Commutation Timing During Run Mode
PWM or Linear Run Mode
Low-Side Driver Transconductance
Amplifier for Linear Run Mode
Dynamic Brake
Power-Down Brake After Delay
Soft Switching or Limited dv/dt Reduces
Acoustic Noise in Linear Run Mode
` Support Functions
Voltage Monitor (Based on 5-V and 12-V Supplies)
Low-Voltage Brake
Charge Pump (25 V) for Driving
N-Channel DMOS H-Bridge Drivers

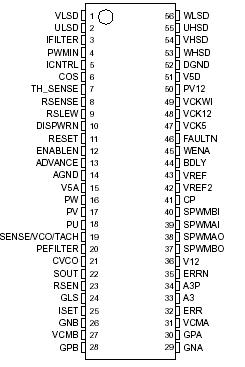

TLS2230 Connection Diagram
TLS2230
