Part Number: TLV2432
Description: The TLV243x and TLV243xA are low-voltage operational amplifier from Texas Instruments. The common-mode input voltage ra...
- Table of contents:
TLV2432
-
Suppliers
DataSheet
General Description
TLV2432 General Description
The TLV243x and TLV243xA are low-voltage operational amplifier from Texas Instruments. The common-mode input voltage range for each device is extended over the typical CMOS amplifiers making them suitable for a wide range of applications. In addition, these devices do not phase invert when the common-mode input is driven to the supply rails. This satisfies most design requirements without paying a premium for rail-to-rail input performance. They also exhibit rail-to-rail output performance for increased dynamic range in single- or split-supply applica- tions. This family is fully characterized at 3-V and 5-V supplies and is optimized for low-voltage operation. The TLV243x only requires 100 m A (typ) of supply current per channel, making it ideal for battery-powered applications. The TLV243x also has increased output drive over previous rail-to-rail operational amplifiers and can drive 600-W loads for telecom applications.
The other members in the TLV243x family are the high-power, TLV244x, and micro-power, TLV2422, versions.
TLV2432 Maximum Ratings
Supply voltage, VDD (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 V
Differential input voltage, VID (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . .±VDD
Input voltage, VI (any input, see Note 1) . . . . . . . . . . . . . . . . . . 0.3 V to VDD
Input current, II (any input) . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . ±5 mA
Output current, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Total current into VDD+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±50 mA
Total current out of VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ± 50 mA
Duration of short-circuit current at (or below) 25°C (see Note 3) . . . . .unlimited
Continuous total dissipation . . . . . . . . . . . . . . . . . . .See Dissipation Rating Table
Operating free-air temperature range, TA :C suffix . . . . . . . . . . . . . . . 0 to 70
I suffix (dual) . . . . . . 40°C to 85°C
I suffix (quad) . . . . .40°C to 125°C
Q suffix . . . . . . . . . . .40°C to 125°C
M suffix . . . . . . . . . . 55°C to 125°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . 65 to 150
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . .260°C
Differential input voltage, VID (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . .±VDD
Input voltage, VI (any input, see Note 1) . . . . . . . . . . . . . . . . . . 0.3 V to VDD
Input current, II (any input) . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . ±5 mA
Output current, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Total current into VDD+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±50 mA
Total current out of VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ± 50 mA
Duration of short-circuit current at (or below) 25°C (see Note 3) . . . . .unlimited
Continuous total dissipation . . . . . . . . . . . . . . . . . . .See Dissipation Rating Table
Operating free-air temperature range, TA :C suffix . . . . . . . . . . . . . . . 0 to 70
I suffix (dual) . . . . . . 40°C to 85°C
I suffix (quad) . . . . .40°C to 125°C
Q suffix . . . . . . . . . . .40°C to 125°C
M suffix . . . . . . . . . . 55°C to 125°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . 65 to 150
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . .260°C

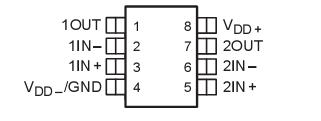

TLV2432 Connection Diagram
TLV2432
