Features: `High Output Drive . . . >300 mA
`Rail-To-Rail Output
`Unity-Gain Bandwidth . . . 2 MHz
`Slew Rate . . . 1.5 V/ms
`Supply Current . . . 700-mA/Per Channel
`Supply Voltage Range . . . 2.5 V to 6 V
`Specified Temperature Range:
TA = 0°C to 70°C . . . Commercial Grade
TA = 40°C to 125°C . . . Industrial Grade

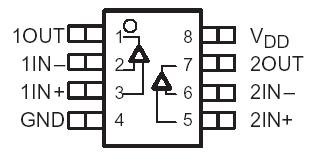

`Universal OpAmp EVMPinout
SpecificationsSupply voltage, VDD (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Differential input voltage, VID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±VDD
Input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±VDD
Output current,IO (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .800 mA
Continuous /RMS output current, IO (each output of amplifier): TJ 3 105°C . . . . . . .350 mA
Continuous /RMS output current, IO (each output of amplifier): TJ 3 150°C . . . . . . .110 mA
Peak output current, IO (each output of amplifier: TJ 3 105°C . . . . . . . . . . . . . . . . .500 mA
Peak output current, IO (each output of amplifier: TJ 3 150°C . . . . . . . . . . . . . . . . .155 mA
Continuous total power dissipation . . . . . . . . . . . . . . . . . . . . . See Dissipation Rating Table
Operating free-air temperature range, TA: C suffix . . . . . . . . . . . . . . . . . . . . .0°C to 70°C
Operating free-air temperature range, TA: I suffix . . . . . . . . . . . . . . . . . . 40°C to 125°C
Maximum junction temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . 260°C
DescriptionThe TLV4110 single supply operational amplifiers provide output currents in excess of 300 mA at 5 V. This enables standard pin-out amplifiers to be used as high current buffers or in coil driver applications. The TLV4110 and TLV4113 comes with a shutdown feature.
The TLV4110 is available in the ultra small MSOP PowerPADETM package, which offers the exceptional thermal impedance required for amplifiers delivering high current levels.
All TLV4110 devices are offered in PDIP, SOIC (single and dual) and MSOP PowerPAD (dual).
