Part Number: TM400DZ-2H



MFG: module

Package Cooled: MIT

D/C: 05+

Description: Powerex Dual SCRPOW-R-BLOK™ Modules aredesigned for use in applicationsrequiring pha...


Urgent Purchase

TM400DZ-2H General Description


Powerex Dual SCR
POW-R-BLOK™ Modules are
designed for use in applications
requiring phase control and
isolated packaging. The modules
are isolated for easy mounting
with other components on
common heatsinks.

TM400DZ-2H Maximum Ratings

Characteristics
Symbol
TM400DZ-2H
Units
Peak Forward Blocking Voltage
VDRM
1600
Volts
Transient Peak Forward Blocking Voltage (Non-Repetitive), t < 5ms
VDSM
1700
Volts
DC Forward Blocking Voltage
VD(DC)
1280
Volts
Peak Reverse Blocking Voltage
VRRM
1600
Volts
Transient Peak Reverse Blocking Voltage (Non-Repetitive), t < 5ms
VRSM
1700
Volts
DC Reverse Blocking Voltage
VR(DC)
1280
Volts
RMS On-State Current
IT(RMS)
620
Amperes
Average On-State Current, TC = 66°C
IT(AV)
400
Amperes
Peak Half-Cycle Surge (Non-Repetitive) On-State Current (60Hz)
ITSM
8000
Amperes
I2t (for Fusing), 8.3 milliseconds
I2t
270000
A2sec
Critical Rate-of-Rise of On-State Current*
di/dt
200
Amperes/s
Peak Gate Power Dissipation
PGM
10
Watts
Average Gate Power Dissipation
PG(AV)
3
Watts
Peak Forward Gate Voltage
VGFM
10
Volts
Peak Reverse Gate Voltage
VGRM
5
Volts
Peak Forward Gate Current
IGFM
4
Amperes
Storage Temperature
TSTG
-40 to 125
°C
Junction Temperature
Tj
-40 to 125
°C
Maximum Mounting Torque M6 Mounting Screw
-
26
in.-lb.
Maximum Mounting Torque M8 Terminal Screw
-
95
in.-lb.
Module Weight (Typical)
-
1100
Grams
V Isolation
VRMS
2500
Volts

TM400DZ-2H Features

 Isolated Mounting
 Low Thermal Impedance

TM400DZ-2H Typical Application

 AC and DC Motor Control
Lighting Control
Electric Furnace Temperature Control
Contactless Switches

TM400DZ-2H datasheet

TM400DZ-2H
PDF/DataSheet Download

  • Datasheet: TM400DZ-2H
  • File Size: 84359 KB
  • Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
  • Click here to Download

Find TM400DZ-2H Suppliers

  • ·TM400-24
  • POWEREX [Powerex Power Semiconductors]
  • HIGH POWER GENERAL USE INSULATED TYPE
  • 62877 KB
  • TM400-24 Datasheet Download
  • ·TM400-2H
  • POWEREX [Powerex Power Semiconductors]
  • HIGH POWER GENERAL USE INSULATED TYPE
  • 62877 KB
  • TM400-2H Datasheet Download
  • ·TM400CZ
  • POWEREX [Powerex Power Semiconductors]
  • HIGH POWER GENERAL USE INSULATED TYPE
  • 62877 KB
  • TM400CZ Datasheet Download
  • ·TM400CZ-24
  • MITSUBISHI [Mitsubishi Electric Semiconductor]
  • HIGH POWER GENERAL USE INSULATED TYPE
  • 62855 KB
  • TM400CZ-24 Datasheet Download
  • ·TM400CZ-2H
  • MITSUBISHI [Mitsubishi Electric Semiconductor]
  • HIGH POWER GENERAL USE INSULATED TYPE
  • 62855 KB
  • TM400CZ-2H Datasheet Download
  • ·TM400CZ-H
  • MITSUBISHI [Mitsubishi Electric Semiconductor]
  • HIGH POWER GENERAL USE INSULATED TYPE
  • 62855 KB
  • TM400CZ-H Datasheet Download
  • ·TM400CZ-M
  • MITSUBISHI [Mitsubishi Electric Semiconductor]
  • HIGH POWER GENERAL USE INSULATED TYPE
  • 62855 KB
  • TM400CZ-M Datasheet Download
  • ·TM400DZ
  • POWEREX [Powerex Power Semiconductors]
  • HIGH POWER GENERAL USE INSULATED TYPE
  • 62877 KB
  • TM400DZ Datasheet Download

Related Part Number

TM400DZ-2H Relative Products

  • TM400DZ-24

    TM400DZ-24

    SCR PHSE CTRL DL MOD 1200V 400A

  • TM400CZ-H

    TM400CZ-H

  • TM400CZ-24

    TM400CZ-24

    The TM400CZ-24 is high power general use insulated type.It's application include DC motor control, NC equipment, AC motor control, Contactless switches, Electric furnace temperature control, Light dimmers. Features of the TM400CZ-24 are:(1)IT(AV) average on...

  • TM3-X2-C0Y

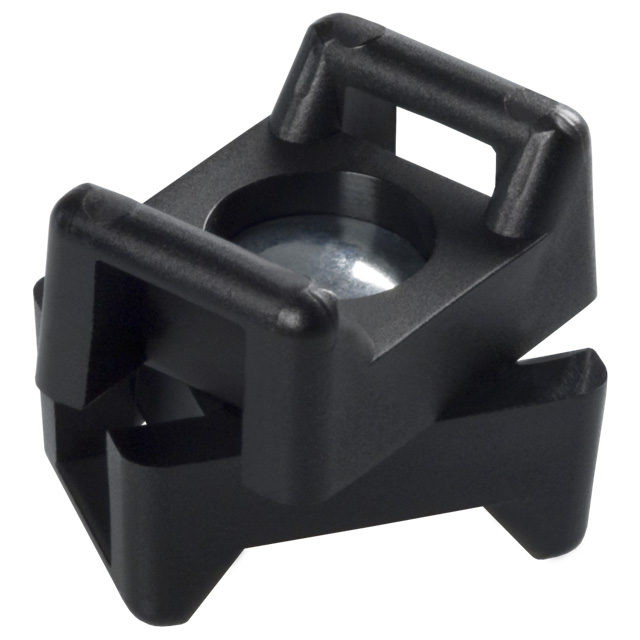

    TM3-X2-C0Y
