Product Details

Description



Application

Thermometer


Pinout

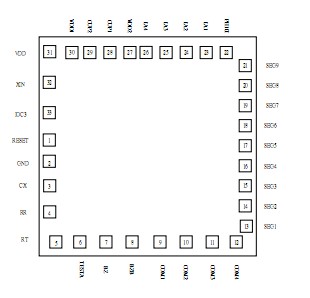

Connection Diagram


Specifications

Name
Symbol
Range
Unit
Maximum Supply Voltage
VDD
-0.3 to 1.8
V
VDD 1
-0.3 to 1.8
V
VDD 2
-0.3 to 3.6
V
Maximum Input Voltage
Vin
-0.3 to VDD+0.3
V
Maximum output Voltage
Vout1
-0.3 to VDD1+0.3
V
Vout2
-0.3 to VDD2+0.3
V
Maximum Operating Temperature
Topg
-20 to +70
Maximum Storage Temperature
Tstg
-25 to +125



Description

Name
I/O
 Description
VDD
P
Positive power supply.
Connect a 0.1u capacitor to GND.
VDD1,2
P
LCD supply voltage, and reference power supply voltage.
Both pins have to connect a 0.1uf capacitor to GND.
RESET
I
Input pin for chip reset request signal, with internal pull-down resistor.
TESTA
O
 Test signal input pin.
CUP1,2
O
 Switching pins for supply the LCD driving voltage.
Connect the CUP1 and CUP2 pins with a 0.1uf non-polarized electrolytic capacitor,
COM1~4
O
 Output pins for driving the common pins of the LCD panel.
SEG1-9
I/O
 Output pins for driving the LCD panel segment.
IOC3
I
O
1. Input / Output port C, can use software to define internal pull-low / low-level-hold
Resistor and Chattering clock to reduce input bounce.
2.ROUT in Ext-R option mode , in the mode IOC function no used.
CX RR, RT
O
1 input pin and 2 output pins for RFC application.
BZB, BZ
O
Output port for alarm, frequency or melody generator
GND
P
Negative supply voltage.
XIN
I
RIN in Ext-R option.
PH10I
I
For testing
IA1
I
Input pin
IA2
I
Input pin
IA3
I
Input pin
IA4
I
Input pin
