TMC22x5yA

Features:

• Very high performance, low cost
• Adaptive comb-based decoding
• Multiple pin-compatible versions
   - 3-line, 2-line, and band-split
   - 8- and 10-bit processing
• Internal digital linestores
• Supports NTSC/PAL field and NTSC frame based decoding
• Multiple input formats
   - CCIR-601/624 (D1), D2, CVBS, YC
• Multiple output formats
   - CCIR-601/624 (D1), RGB, YCBCR
• 10-18 Mpps data rate
• Parallel and serial control interface
• Single +5V power supply


Application

• Studio television equipment
• Personal computer video input
• MPEG and JPEG compression inputs

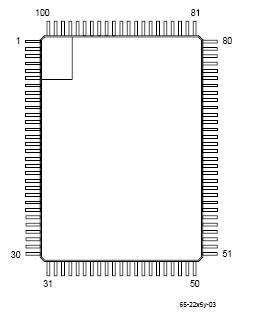

Pinout




Specifications

Parameter	Min.	Max.	Unit
Power Supply voltage	-0.5	+7.0	V
Digital Inputs
Applied Voltage	-0.5	VDD+0.5	V
Forced current 3, 4	-20.0	+20.0	mA
Digital Outputs
Applied voltage 2	-0.5	VDD+0.5	V
Forced current 3, 4	-3.0	+6.0	mA
Short circuit duration (single output in HIGH state to ground)		1 second
Analog Output Short circuit duration (all outputs to ground)		infinite
Temperature
Operating, ambient	-20	110	°C
junction		140	°C
Lead, soldering (10 seconds)		300	°C
Vapor Phase soldering (1 minute)		220	°C
Storage		150	°C

Notes:
1. Absolute maximum ratings are limiting values applied individually while all other parameters are within specified operating conditions. Functional  operation under any of these conditions is NOT implied. Performance and reliability are guaranteed only if Operating Conditions are not exceeded.
2. Applied voltage must be current limited to specified range.
3. Forcing voltage must be limited to specified range.
4. Current is specified as conventional current flowing into the device.


Description

The TMC22x5yA family of Digital Video Decoders offers unprecedented, broadcast-quality video processing performance in a single chip. It accepts line-locked or subcarrierlocked composite, YC, or D1 digital video and produces digital components in a variety of formats. An internal three-line adaptive comb decoder structure produces optimal picture quality with a wide range of source material. NTSC/PAL field and NTSC frame based decoding is supported with external memory. Full comb programmability allows the user to tailor the decoder's response to a particular systems goals.

A family of products offers 3-line, 2-line, and simple decoders in 8-bit and 10-bit versions-all in a pin and softwarecompatible format. Serial and parallel control ports are provided. These submicron CMOS devices are packaged in a 100-lead Metric Quad Flat Pack (MQFP).
