TMF3202Z

Features: - Gain controlled amplifier with AGC- Integrated gate protection diodes- High AGC-range, high gain, low noise figureApplication- Gain controlled input stage for UHF and VHF tuners- Professional communications equipmentPinoutSpecifications Parameter Symbol Ratings Unit Drain-So...

product image

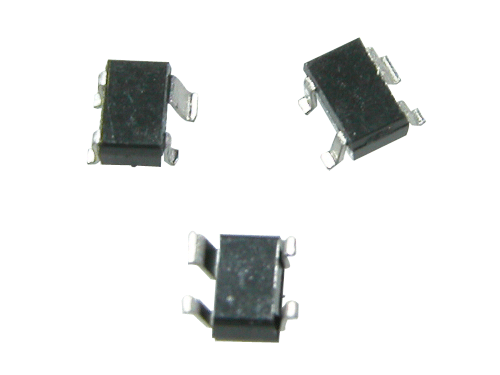

TMF3202Z Picture
See larger image
SeekIC No. : 004523693 Detail

TMF3202Z: Features: - Gain controlled amplifier with AGC- Integrated gate protection diodes- High AGC-range, high gain, low noise figureApplication- Gain controlled input stage for UHF and VHF tuners- Profess...

TMF3202Z Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TMF3202Z
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

- Gain controlled amplifier with AGC
- Integrated gate protection diodes
- High AGC-range, high gain, low noise figure




Application

- Gain controlled input stage for UHF and VHF tuners
- Professional communications equipment




Pinout



Connection Diagram




Specifications

Parameter Symbol Ratings Unit
Drain-Source Voltage VDS 10 V
Drain Current ID 30 mA
Gate 1 Current IG1 ±10 mA
Total Power Dissipation Ptot 200 mW
Storage Temperature Tstg -65 ~ 150
Operating Junction Temperature Tj 150





Description

N-channel Dual gate MOSFET
The TMF3202Z is an enhancement type N-channel field-effect transistor. The source and substrate are interconnected. Internal bias circuits enable DC stabilization and a very good cross-modulation performance during AGC. Integrated diodes between the gates and source protect against excessive input voltage surges.


The TMF3202Z is an enhancement type N-channel field-effect transistor. The source and substrate are interconnected. Internal bias circuits enable DC stabilization and a very good crossmodulation performance during AGC. Integrated diodes between the gates and source protect against excessive input voltage surges. The transistor has a SOT343 micro-miniature plastic package.
