Product Details

Description



Features:

Modulated serial digital output, proportional to temperature
±0.5°C typical accuracy at 25°C
±1.0°C accuracy from 0°C to 70°C
Two grades available
Operation from −40°C to +150°C
Operation from 3 V to 5.5 V
Power consumption 70 W maximum at 3.3 V
CMOS/TTL compatible output on TMP05
Flexible open-drain output on TMP06
Small, low cost 5-lead SC-70 and SOT-23 packages




Application

Isolated sensors
Environmental control systems
Computer thermal monitoring
Thermal protection
Industrial process control
Power-system monitors

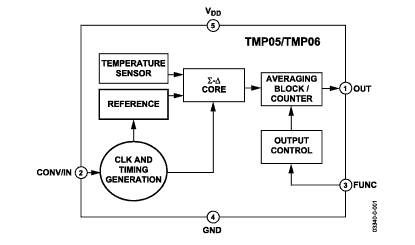

Pinout

TMP05 Diagram




Specifications

Output Type Digital
Sensor Output PWM
Temp Res(°C/LSB) 0.025°C/LSB
Supply Voltage Range +2.7V to +5.5V
Temp Range(s) -40 to +150





Description

The TMP05/TMP06 is a complete temperature monitoring system in 5-Lead SOT-23 and 5-Lead SC-70 packages. The TMP05/TMP06 are monolithic temperature sensors that generate a modulated serial digital
