TMS320C54V90

Features:

 Provides Two-Chip Modem Solution
Data Rates from 300 bps to 56 Kbps
Data Modulation Standards
  V.90, V.34, V.32bis, V.32, V.22bis, V.22, V.23,
  V.21 and V.23 Reversible (Minitel), Bell 212,
  Bell 103
FAX Capabilities
− ITU−T V.17, V.29, V.27ter Modulations
− TIA/EIA 578 Class 1 Interface
V.42 or MNP Class 3 and 4 Error Control and V.42bis Compression
Caller ID
Field-Proven Modem Algorithms Give
  Highest Performance, Reliability, and
  Compatibility
Non-Volatile EEPROM Configuration
  Storage
Worldwide Telecom Approvals
Parallel Phone Support Including Parallel
  Phone Detection
Parallel Phone Exclusion Relay Control
Protected Against Surge and Overvoltage
  on the Telephone Line
Parallel Host Port Interface Supports a
  Variety of Industry Standard Busses
Integral Serial Interface (UART)
Autobaud on Serial DTE Interface
State-of-the-Art Integrated Transformerless
  Silicon DAA for Phone Line Interconnection
40K x 16-Bit Dual-Access On-Chip RAM
128K x 16-Bit On-Chip ROM

Application

−  Embedded Systems
−  Set-Top Boxes
−  Gaming Consoles
−  Internet Appliances
−  Portable Devices
    (PDAs, Digital Cameras)
−  Remote Data Collection, Point-of-Sale
−  Meter Reading, Utility Monitoring

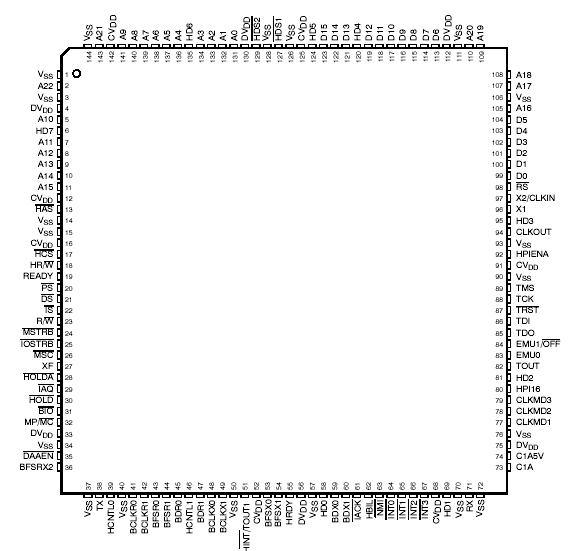

Pinout

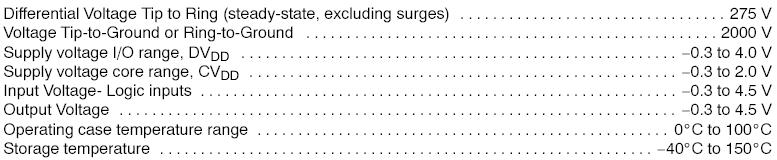

Specifications




Description

   The TMS320C54V90 is used to implement a full-featured, high-performance modem technology, intended for use in embedded systems and similar applications. This highly integrated solution implements a complete modem using only two chips: the TMS320C54V90 DSP with on-chip RAM and ROM, and the Si3016 line-side DAA.
   The modem can connect to a host system serially (RS-232 functionality), or as an 8-bit peripheral to the processor in a host system. The TMS320C54V90 uses a standard Digital Signal Processor (DSP) and proprietary firmware to perform all the modem signal processing, the V.42/V.42bis compression, and AT commands interpretation for modem control functions.
