TMS320VC5410A

Features:

* Advanced Multibus Architecture With Three
   Separate 16-Bit Data Memory Buses and One
   Program Memory Bus
* 40-Bit Arithmetic Logic Unit (ALU) Including a
   40-Bit Barrel Shifter and Two Independent
   40-Bit Accumulators
* 17- * 17-Bit Parallel Multiplier Coupled to a
   40-Bit Dedicated Adder for Non-Pipelined
   Single-Cycle Multiply/Accumulate (MAC)
   Operation
* Compare, Select, and Store Unit (CSSU) for the
   Add/Compare Selection of the Viterbi Operator
* Exponent Encoder to Compute an Exponent
   Value of a 40-Bit Accumulator Value in a
   Single Cycle
* Two Address Generators With Eight Auxiliary
   Registers and Two Auxiliary Register
   Arithmetic Units (ARAUs)
* Data Bus With a Bus Holder Feature
* Extended Addressing Mode for 8M * 16-Bit
   Maximum Addressable External Program
   Space
* 64K x 16-Bit On-Chip RAM Composed of Eight
   Blocks of 8K * 16-Bit On-Chip Dual-Access
   Program/Data RAM
* 16K * 16-Bit On-Chip ROM Configured for
   Program Memory
* Enhanced External Parallel Interface (XIO2)
   Single-Instruction-Repeat and Block-Repeat
   Operations for Program Code
* Block-Memory-Move Instructions for Better
   Program and Data Management
* Instructions With a 32-Bit Long Word Operand
* Instructions With Two- or Three-Operand
   Reads
* Arithmetic Instructions With Parallel Store and
   Parallel Load
* Conditional Store Instructions

* Fast Return From Interrupt
   On-Chip Peripherals
   Software-Programmable Wait-State
      Generator and Programmable
      Bank-Switching
  On-Chip Programmable Phase-Locked
   Loop (PLL) Clock Generator With Internal
   Oscillator or External Clock Source
   One 16-Bit Timer
   Six-Channel Direct Memory Access (DMA)
   Controller
   Three Multichannel Buffered Serial Ports
   (McBSPs)
   8/16-Bit Enhanced Parallel Host-Port
   Interface (HPI8/16)
* Power Consumption Control With IDLE1,
   IDLE2, and IDLE3 Instructions With
   Power-Down Modes
* CLKOUT Off Control to Disable CLKOUT
* On-Chip Scan-Based Emulation Logic, IEEE
   Std 1149.1 (JTAG) Boundary Scan Logic
* 144-Pin Ball Grid Array (BGA) (GGU Suffix)
* 144-Pin Low-Profile Quad Flatpack
   (LQFP)(PGE Suffix)
* 6.25-ns Single-Cycle Fixed-Point Instruction
   Execution Time (160 MIPS)
* 8.33-ns Single-Cycle Fixed-Point Instruction
   Execution Time (120 MIPS)
* 3.3-V I/O Supply Voltage (160 and 120 MIPS)
* 1.6-V Core Supply Voltage (160 MIPS)
* 1.5-V Core Supply Voltage (120 MIPS)

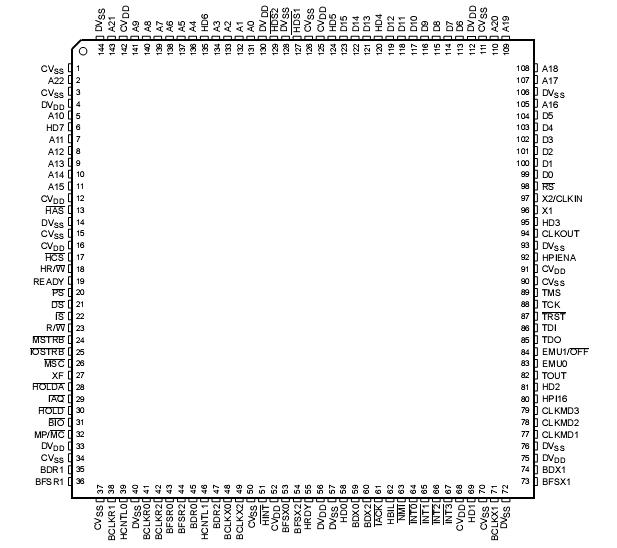

Pinout




Description

  The TMS320VC5410A fixed-point, digital signal processor (DSP) TMS320VC5410A (hereafter referred to as the TMS320VC5410A unless otherwise specified) is based on an advanced modified Harvard architecture that has one program memory bus and three data memory buses. This processor TMS320VC5410A provides an arithmetic logic unit (ALU) with a high degree of parallelism, application-specific hardware logic, on-chip memory, and additional on-chip peripherals. The basis of the operational flexibility and speed of this DSP is a highly specialized instruction set.
  Separate program and data spaces allow simultaneous access to program instructions and data, providing a high degree of parallelism. Two read operations and one write operation can be performed in a single cycle. Instructions with parallel store and application-specific instructions can fully utilize this architecture. In addition, data can be transferred between data and program spaces. Such parallelism supports a powerful set of arithmetic, logic, and bit-manipulation operations that can all be performed in a single machine cycle. The 5410A also includes the control mechanisms to manage interrupts, repeated operations, and function calls.
