TP11368

If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
V_CC to GND............................. 7V
Voltage at Any Digital
Inputs or Outputs GND ..............− 0.3V to V_CC + 0.3V
Storage Temperature Range............ −45°C to +125°C
Lead Temperature
(Soldering, 10 sec) .......................300°C
Latch-up Immunity on any Pin................. ±75 mA

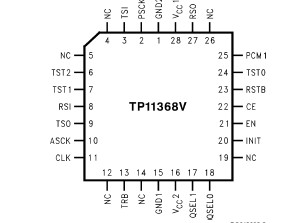

_JA (28-pin PLCC) .......................79°C/W
_jA (24-pin DIP) ........................49°C/W

The TP11368 is an octal (8) channel Adaptive DifferentialPulse Code Modulation (ADPCM) transcoder, fully compatible to ITU G.726 recommendation in 40 kbps, 32 kbps, 24 kbps, 16 kbps and ANSI 32 kbps modes. The TP11368 ADPCM processor can operate on up to 16 independent channels in an 8 kHz frame. Each channel is individually configured, supporting both full and half duplex operation. All input/output transfers occur on an interrupt basis using serial, double buffered data registers. Together with National's TP3054/57 COMBO^® or TP3070/71 COMBO II devices, the TP11368 forms complete ADPCM channels with Codec/ filtering.
