TPS2206DAP

Features: Fully Integrated VCC and VPP Switching forDual-Slot PC Card(TM) InterfaceP2C(TM) 3-Lead Serial Interface Compatible WithCardBus(TM) Controllers3.3 V Low-Voltage ModeMeets PC CardStandardsRESET for System Initialization of PC Cards12-V Supply Can Be Disabled Except During12-V Flash Progra...

product image

TPS2206DAP Picture
See larger image
SeekIC No. : 004526593 Detail

TPS2206DAP: Features: Fully Integrated VCC and VPP Switching forDual-Slot PC Card(TM) InterfaceP2C(TM) 3-Lead Serial Interface Compatible WithCardBus(TM) Controllers3.3 V Low-Voltage ModeMeets PC CardStandardsR...

TPS2206DAP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TPS2206DAP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Fully Integrated VCC  and VPP  Switching for
Dual-Slot PC Card(TM) Interface
P2C(TM) 3-Lead Serial Interface Compatible With
CardBus(TM) Controllers
3.3 V Low-Voltage Mode
Meets PC CardStandards
RESET for System Initialization of PC Cards
12-V Supply Can Be Disabled Except During
12-V Flash Programming
Short Circuit and Thermal Protection
30-Pin SSOP (DB) and 32-Pin TSSOP (DAP)
Compatible With 3.3-V, 5-V and 12-V PC Cards
Low r  (140-m  5-V VCC  Switch; 110-m
DS(on) 3.3-V VCC  Switch)
Break-Before-Make Switching


Pinout

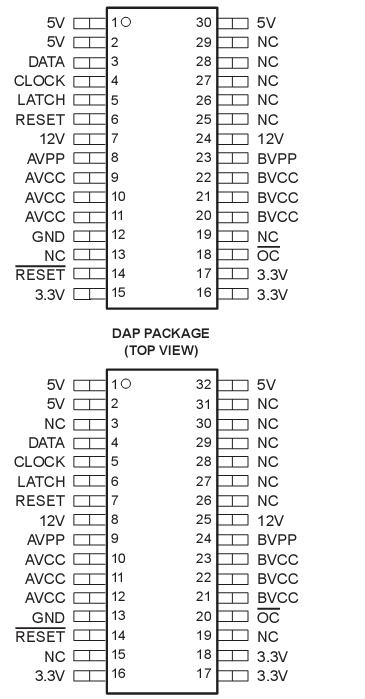

Connection Diagram


Specifications

Input voltage range for card power:  VI(5V)   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.3 V to 7 V

                                                           V I(3.3V)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....  . .  0.3 V to 7 V

                                                            V I(12V)   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . .  0.3 V to 14 V
Logic input voltage  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .  0.3 V to 7 V
Continuous total power dissipation  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... .  See Dissipation Rating Table
Output current (each card):  I O(xVCC)  . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . .. . . . . . internally limited

                                               IO(xVPP)   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . internally limited

Operating virtual junction temperature range, TJ  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .-40  to 150
Operating free-air temperature range, TA  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . .. . . .-40 to 85

Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . -55 to 150

Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  260°C


Description

The TPS2206 PC Card power-interface switch provides an integrated power-management solution for two PC Cards. All of the discrete power MOSFETs, a logic section, current limiting, and thermal protection for PC Card control are combined on a single integrated circuit (IC), using the Texas Instruments LinBiCMOS(TM) process. The circuit allows the distribution of 3.3-V, 5-V, and/or 12-V card power by means of the P2 C (PCMCIA Peripheral-Control) Texas Instruments nonproprietary serial interface. The current-limiting feature eliminates the need for fuses, which reduces component count and improves reliability.

The TPS2206 is backward compatible with the TPS2202 and TPS2202A, except that there is no V DD  connection. Bias current is derived from either the 3.3-V input pin or the 5-V input pin. The TPS2206 also eliminates the APWR_GOOD and BPWR_GOOD pins of the TPS2202 and TPS2202A.

The TPS2206 features a 3.3-V low-voltage mode that allows for 3.3-V switching without the need for 5 V. This facilitates low-power system designs such as sleep mode and pager mode where only 3.3 V is available.
