Features: ` Two Buck Controllers Providing up to 3A and One 300mA LDO for Powering 3 Supplies
` Tested and Endorsed by Xilinx for Powering the Spartan™-3 and Spartan-3L FPGAs
` Adjustable (1.2V to 6.5V for Bucks, 0.9V to 6.5V for LDO) Output Voltages on All Channels
` Independent Soft-Start for Each Supply
` Independent Enable for Each Supply
` LDO Stable with Small 2.2F Ceramic Output Cap
` Input Voltage Range: 2.2V to 6.5V
` Small, Low-Profile 4.5mm x 3.5mm x 0.9mm QFN Package
Application· FPGA Supplies
· DSP/ASIC Supplies

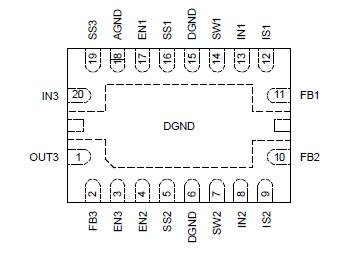

· Split Supply ApplicationsPinout
Specificationsover operating free-air temperature range (unless otherwise noted)(1)
| |
TPS75003 |
UNIT |
| VINX range (IN1, IN2, IN3) |
-0.3 to +7.0 |
V |
| VENX range (EN1, EN2, EN3) |
-0.3 to VINX +0.3 |
V |
| VSWX range (SW1, SW2, SW3) |
-0.3 to VINX +0.3 |
V |
| VISX range (IS1, IS2, IS3) |
-0.3 to VINX +0.3 |
V |
| VOUT3 range |
-0.3 to +7.0 |
V |
| VSSX range (SS1, SS2, SS3) |
-0.3 to VINX +0.3 |
V |
| VFBX range (FB1, FB2, FB3) |
-0.3 to +3.3 |
V |
| Peak LDO output current (IOUT3) |
Internally limited |
- |
| Continuous total power dissipation |
See Dissipation Ratings Table |
- |
| Junction temperature range, TJ |
-55 to +150 |
|
| Storage temperature range |
-65 to +150 |
|
| ESD rating, HBM |
2 |
kV |
| ESD rating, CDM |
500 |
V |
(1) Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under the Electrical Characteristics is not implied. Exposure to absolute maximum rated conditions for extended periods may affect device reliability.
DescriptionThe TPS75003 is a complete power management solution for FPGA, DSP and other multi-supply appli-cations. The device has been tested with and meets all of the Xilinx Spartan-3 and Spartan-3L start-up profile requirements, including monotonic voltage ramp and minimum voltage rail rise time. Independent Enables for each output of TPS75003 allow sequencing to minimize demand on the power supply at start-up. Soft-start on each supply limits inrush current during start-up. Two integrated buck controllers allow efficient,cost-effective voltage conversion for both low and high current supplies such as core and I/O. A 300mA LDO of TPS75003 is integrated to provide an auxiliary rail such as VCCAUX on the Xilinx Spartan-3 FPGA. All three supply voltages are offered in user-programmable options for maximum flexibility.
The TPS75003 is fully specified from -40°C to +85°C and is offered in a QFN package, yielding a high compact total solution size with high power dissipation capability.
TPS75003 Data Sheet
