About TQ1422

PDF/DataSheet Download

Datasheet: TQ1422

File Size: 142701 KB

Manufacturer: TRIQUINT [TriQuint Semiconductor]

Download : Click here to Download

Related PDF Download

Related Part Number

General Description

TQ1422 is a quadband capable TX bandpass filter for GSM850/E-GSM/DCS1800/PCS1900 applications. The integrated passive filter provides an optimum interface between the TQM7M4011/4012/4014 Power Amplifier Modules and direct conversion transceiver with balanced outputs. TQ1422 replaces up to 17 surface-mount components [including 2 Baluns and/or SAW filter] typically required on the phone board to provide similar functionality. High value inductors to
supply open collector modulators are integrated.

Maximum Ratings

Parameter
Min
Max
Unit
Maximum input power
25
dBm
Maximum bias current GSM
50mA(Rmax=2Ohm)
mA
Maximum bias current PCN/PCS
50mA(Rmax=1.5Ohm)
mA
Operation temperate range
-40
+85
°C
Storage temperature range
-60
+150
°C

Features

• Low insertion loss
• High suppression of 2nd,3rd , 4th harmonics
• High selectivity
• Balanced to single-ended operation
• GSM Input: 310 Ohm balanced PCN/PCS Input: 80 Ohm balanced
• 50 Ω single-ended output impedances.
• Integrated DC-biasing to input
• MLP 10L 3x3 package (3x3mm²)

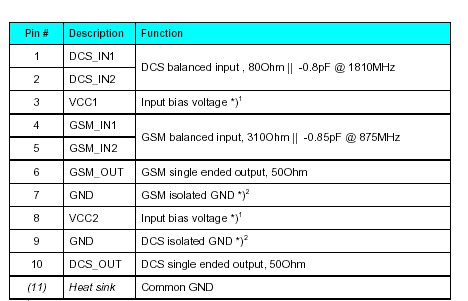

Connection Diagram
