TQ2059

Features: • Output frequency range: 200 MHz to 350 MHz• One differential PECL output: 600 mV (min) swing• Common-mode voltage: VDD 1.2 V (max) VDD 1.6 V (min)• Period-to-period output jitter: 30 ps peak-to-peak (typ) 120 ps peak-to-peak (max)• Reference clock input: 2...

product image

TQ2059 Picture
See larger image
SeekIC No. : 004527801 Detail

TQ2059: Features: • Output frequency range: 200 MHz to 350 MHz• One differential PECL output: 600 mV (min) swing• Common-mode voltage: VDD 1.2 V (max) VDD 1.6 V (min)• Period-to-peri...

TQ2059 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TQ2059
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Output frequency range: 200 MHz to 350 MHz
• One differential PECL output: 600 mV (min) swing
• Common-mode voltage:
   VDD 1.2 V (max)
   VDD 1.6 V (min)
• Period-to-period output jitter:
   30 ps peak-to-peak (typ)
   120 ps peak-to-peak (max)
• Reference clock input:
   20 MHz to 35 MHz TTL-level crystal oscillator
• Self-contained loop filter
• Optional 200-ohm pull-down resistors for AC-coupled outputs
• +5 V power supply
• 28-pin J-lead surface-mount package
• Ideal for designs based on DEC Alpha AXP™ processors


Pinout

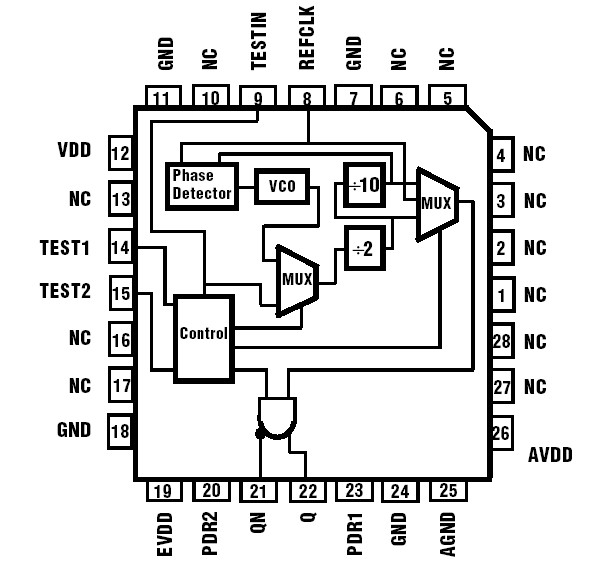

Connection Diagram


Specifications

Storage temperature
65 °C to +150 °C
Ambient temperature with power applied
55 °C to +110 °C
Supply voltage to ground potential
0.5 V to +7.0 V
DC input voltage
0.5 V to +(VDD + 0.5)V
DC input current
30 mA to +5 mA
Package thermal resistance (MQuad)
JA = 45 °C/W
Die junction temperature
TJ = 150 ° C



Description

TriQuint's TQ2059 is a high-frequency clock generator. It utilizes a 20 MHz to 35 MHz TTL input to generate a 200 MHz to 350 MHz PECL output. The TQ2059 has a completely self-contained Phase-Locked Loop (PLL) running at 400 MHz to 700 MHz. This stable PLL allows for a low period-to-period output jitter of 120 ps (max), and enables tight duty-cycle control of 55%to 45% (worst case).

The TQ2059 provides optional 200-ohm on-chip pull-down resistors which are useful if the output is AC-coupled to the device being driven. In order to use these resistors, pin 20 (PDR2) should be connected to pin 21 (QN), and pin 23 (PDR1) should be connected to pin 22 (Q).

Various test modes on the TQ2059 simplify debug and testing of systems by slowing the clock output or by bypassing the PLL.
