TQ3M31

Bandwidth :
Output Intercept Point :
Operating Supply Voltage :
Supply Current :
Maximum Operating Temperature :
Mounting Style :
Package / Case :
Type :
Packaging : Reel
Operating Frequency : 800 MHz to 1900 MHz
Noise Figure : 1.5 dBm at 1960 MHz


Features:

 Small size: Leadless 3x3mm
 Single 2.8V operation
 Low-current operation
 Gain Select
 Mode Select
 High IP3 performance
 Few external components


Application

 IS-95 CDMA Mobile Phones
 AMPS Mobile Phones
 Dual Mode CDMA Cellular applications
 Dual Band CDMA Cellular & PCS
 832-870MHz CDMA applications
 1930-1990MHz CDMA applications

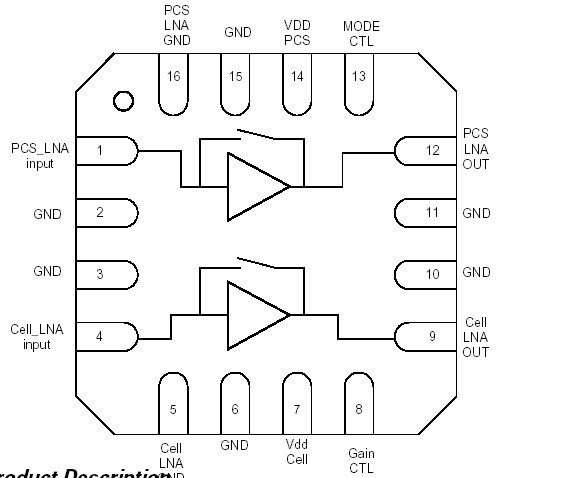

Pinout




Specifications

Parameter	Value	Units
DC Power Supply	5.0	V
Power Dissipation	250	mW
Operating Temperature	-30 to 85	C
Storage Temperature	-60 to 150	C
Signal level on inputs/outputs	+20	dBm
Voltage to any non supply pin	+0.3	V

Description

The TQ3M31 is a 2.8V, RF dual band LNA IC designed specifically for Cellular &PCS band CDMA/AMPS applications. It's RF performance meets the requirements of products designed to the IS-95 and AMPS standards. The TQ3M31 is designed to be used with the TQ5131 (Cellular CDMA/AMPS mixer) and the TQ5631 (PCS CDMA mixer) which provides a complete Tri-Mode CDMA receiver for 800MHz dualmode and 1900MHz phones.

The LNA TQ3M31 incorporates on-chip switches which determine CDMA, AMPS, and bypass mode select. When used with the TQ5131 and TQ5631, four gain states are
available in each band. The RF output port is internally matched to 50 Ω, greatly simplifying the design and keeping the number of external components to a minimum. The TQ3M31 achieves good RF performance with low current consumption, supporting long standby times in portable applications. Coupled with the very small MLF 3x3 package, the TQ3M31 is ideally suited for Cellular & PCS band mobile phones.

Parameters:

Technical/Catalog Information	TQ3M31
Vendor	Triquint Semiconductor Inc
Category	RF and RFID
Package / Case	16-MLFP
Voltage - Supply	2.8V
Current - Supply	11mA
Gain	13.5dB
Frequency	832MHz ~ 1.99GHz
RF Type	Cellular, PCS, CDMA/AMPS
Packaging	Tape & Reel (TR)
Noise Figure	1.5dB
P1db	-
Test Frequency	1.96GHz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TQ3M31 TQ3M31
