TQS5202

Maximum Operating Temperature : + 85 C
Minimum Operating Temperature : - 40 C
Mounting Style : SMD/SMT
Packaging : Reel
Number of Switches : Dual
Switch Configuration : DPDT
Insertion Loss : 0.95 dB
Off Isolation (Typ) : 33 dB
Package / Case : VQFN-12


Features:

• Integrated TX-RX and Diversity Switch for
  Dual-band 802.11a/b/g WLAN Systems
• 1.0 to 6.0GHz Frequency Coverage
• Low Insertion Loss
• High Isolation
• Positive Control Voltage
• No Supply Voltage Necessary
• GaAs pHEMT Technology
• Leadless 3.0 x 3.0 x 0.9 mm Pb-Free SMT Package


Application

• 802.11b WLAN
• 802.11g WLAN
• 802.11a WLAN
• TX-RX Switching
• Antenna Diversity Switching

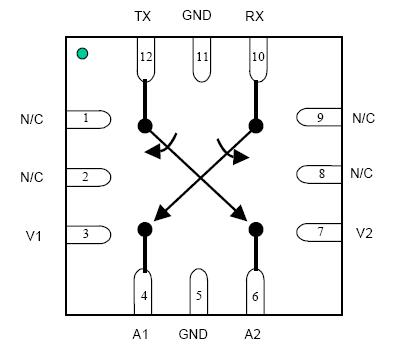

Pinout




Specifications

Symbol	Parameter	Absolute Maximum Value	Units
Vcntrl	Control Voltage Range	-5.0 to 5.0	VDC
RFIN	RF input, 50ohm RF impedance	3.0	w
Tj	Junction Temperature @ 30dBm Input, 25°C	50	°C
TC	Case Temperature, Survival	-40 to +100	°C
TSTG	Storage Temperature	-40 to +150	°C
Toper	Operating Temperature Range	-40 to +85	°C
Note: The part may not survive all maximums applied simultaneously.

Description

The TQS5202 is a dualband double-pole double-throw switch configured for TX-RX and Antenna Diversity switching applications for the WLAN market. The device exhibits industry-leading insertion loss, isolation and power handling. It requires no fixed supply voltage and operates with a positive control voltage. The switch TQS5202 is manufactured using TriQuint's GaAs pHEMT process and is packaged in an industry standard 3.0mm x 3.0mm x 0.9mm VQFN-12 Pb-Free package.

Parameters:

Technical/Catalog Information	TQS5202
Vendor	Triquint Semiconductor Inc
Category	RF and RFID
RF Type	802.11a/b/g/Wi-Fi, WLAN
Package / Case	12-VQFN
Frequency	1GHz ~ 6GHz
Features	-
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TQS5202 TQS5202
