Maximum Operating Temperature
: + 85 C
Packaging
: Reel
Maximum Data Rate
: 115.2 Kbps
Modulation Format
: ASK, OOK
Output Power
: 0 dBm
Operating Supply Voltage
: 2.2 V to 3.7 V
Interface Type
: ASH
Frequency Range
: 433.72 MHz to 434.12 MHz
Package / Case
: SM-20L
Features: • Designed for Short-Range Wireless Data Communications
• Supports RF Data Transmission Rates Up to 115.2 kbps
• 3 V, Low Current Operation plus Sleep Mode
• Stable, Easy to Use, Low External Parts Count
• Complies with Directive 2002/95/EC (RoHS)Pinout

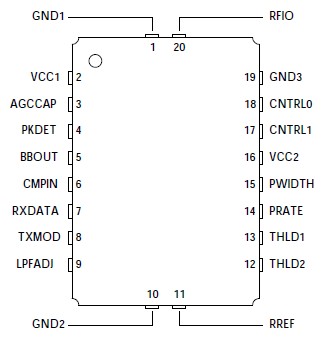

SpecificationsCharacteristic Symbol Minimum Typical Maximum Units Operating Frequency fo 433.72 434.12 MHz Modulation Types OOK & ASK OOK Data Rate 30 kbps ASK Data Rate 115.2 kbps Receiver Performance High Sensitivity Mode Sensitivity 2.4 kbps 10-3 BER AM Test Method Method -109 dBm Sensitivity 2.4 kbps 10-3 BER Pulse Test -103 dBm Current 2.4 kbps (RPR = 330 K) 3.0 mA Sensitivity 19.2 kbps 10-3 BER AM Test Method -105 dBm Sensitivity 19.2 kbps 10-3 BER Pulse Test Method -99 dBm Current 19.2 kbps (RPR = 330 K) 3.1 mA Sensitivity 115.2 kbps 10-3 BER AM Test Method -101 dBm Sensitivity 115.2 kbps 10-3 BER Pulse Test Method -95 dBm Current 115.2 kbps 3.8 mA Receiver Performance Low Current Mode Sensitivity 2.4 kbps 10-3 BER AM Test Method -104 dBm Sensitivity 2.4 kbps 10-3 BER Pulse Test Method -98 dBm Current 2.4 kbps (RPR = 1100 K) 1.8 mA Receiver Out-of-Band Rejection 5% fo R5% 80 dB Receiver Ultimate Rejection RULT 100 dB
DescriptionTR3000 Designed for Short-Range Wireless Data Communications Supports RF Data Transmission Rates Up to 115.2 kbps 3 V, Low Current Operation plus Sleep Mode Stable, Easy to Use, Low External Parts Count Complies with Directive 2002/95/EC (RoHS)
Parameters: | Technical/Catalog Information | TR3000 |
| Vendor | RF MONOLITHICS INC (VA) |
| Category | RF and RFID |
| Frequency | 433.92MHz |
| Data Rate - Maximum | 115.2kbps |
| Modulation or Protocol | ASK, OOK |
| Applications | General Data Transfer |
| Power - Output | - |
| Sensitivity | -101dBm |
| Voltage - Supply | 2.2 V ~ 3.7 V |
| Current - Receiving | 3.8mA |
| Current - Transmitting | 7.5mA |
| Package / Case | SM-20L |
| Operating Temperature | 5°C ~ 85°C |
| Data Interface | PCB, Surface Mount |
| Antenna Connector | PCB, Surface Mount |
| Packaging | Digi-Reel? |
| Memory Size | - |
| Lead Free Status | Lead Free Compliant by Exemption |
| RoHS Status | RoHS Compliant by Exemption |
| Other Names | TR3000
TR3000
583 1089 6 ND
58310896ND
583-1089-6
|
TR3000 Data Sheet
