Output Current
:
Number of Channels
: 1
Mounting Style
: SMD/SMT
Maximum Operating Temperature
: + 125 C
Packaging
: Reel
Shutdown
: No
Common Mode Rejection Ratio (Min)
: 65 dB
Operating Supply Voltage
: 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V
Package / Case
: SOT-23
Input Bias Current (Max)
: 150 nA
Slew Rate
: 0.4 V/us at 15 V
Input Offset Voltage
: 4 mV at 30 V
Features: ` Large output voltage swing:
` 0 to 3.5V min. (@VCC = 5V)
` Low supply current: 500A
` Low input bias current: 20nA
` Low input offset voltage: 2mV max.
` Wide power supply range:
` Single supply: +3V to +30V
` Dual supplies: ±1.5V to ±15V

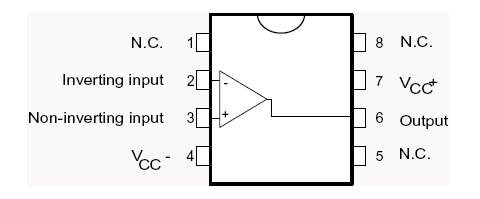

` Stable with high capacitive loadsPinout
Specifications
| Parameter |
Symbol |
Value |
Unit |
| VCC |
Supply Voltage |
±16 to 32 |
V |
| Vi |
Input Voltage
|
-0.3 to +32 |
V |
| Vid |
Differential Input Voltage |
+32 |
V |
| - |
Output Short-circuit Duration - note 1) |
Infinite |
|
| Iin |
Input Current - note 2) |
50 |
mA |
| Toper |
Operating Free-Air Temperature Range |
-40 to +125 |
°C |
| Tstg |
Storage Temperature Range |
-65 to +150 |
°C |
| Rthja |
Thermal Resistance Junction to Ambient (3)
SOT23-5
SO8 |
250
125 |
°C/W |
| Rthjc |
Thermal Resistance Junction to Case
SOT23-5
SO8 |
81
40 |
°C/W |
| ESD |
HBM: Human Body Model(4) |
300 |
V |
| MM: Machine Model(5) |
200 |
V |
DescriptionThe TS321ILT is intended for cost-sensitive applications where space saving is of great importance. This bipolar op-amp TS321ILT offers the benefits of a reduced component size (SOT23-5 package), with specifications that match (or are better) industry standard devices (like the popular LM358A, LM324, etc.). The TS321ILT has an input common mode range (Vicm) that includes ground, and therefore can be employed in single supply applications.
Parameters: | Technical/Catalog Information | TS321ILT |
| Vendor | STMicroelectronics (VA) |
| Category | Integrated Circuits (ICs) |
| Packaging | Cut Tape (CT) |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 - Single |
| Package / Case | SOT-23-5 |
| Slew Rate | 0.4 V/s |
| Gain Bandwidth Product | 800kHz |
| Current - Supply | 600A |
| Current - Output/Channel | 40mA |
| Voltage - Supply, Single/Dual (±) | 3 V ~ 30 V, ±1.5 V ~ 15 V |
| Output Type | - |
| -3db Bandwidth | - |
| Current - Input Bias | 20nA |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Input Offset | 500V |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | TS321ILT
TS321ILT
497 4061 1 ND
49740611ND
497-4061-1
|
TS321ILT Data Sheet
