TS3702I

Features: ·PUSH-PULL CMOS OUTPUT (NO EXTER- .NALPULL-UP RESISTOR REQUIRED)· EXTREMELY LOW SUPPLY CURRENT : .9mA TYP / COMPARATOR ·WIDE SINGLE SUPPLY RANGE (3V TO 16V) .OR DUAL SUPPLIES (± 1.5V TO± 8V) ·EXTREMELY LOW INPUT BIAS CURRENT : .1pATYP·EXTREMELY LOW INPUT OFFSET .CURRENT : 1pATYP· INPUT C...

product image

TS3702I Picture
See larger image
SeekIC No. : 004528628 Detail

TS3702I: Features: ·PUSH-PULL CMOS OUTPUT (NO EXTER- .NALPULL-UP RESISTOR REQUIRED)· EXTREMELY LOW SUPPLY CURRENT : .9mA TYP / COMPARATOR ·WIDE SINGLE SUPPLY RANGE (3V TO 16V) .OR DUAL SUPPLIES (± 1.5V TO± 8...

TS3702I Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS3702I
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·PUSH-PULL CMOS OUTPUT (NO EXTER- .NALPULL-UP RESISTOR REQUIRED)
· EXTREMELY LOW SUPPLY CURRENT : .9mA TYP / COMPARATOR
·WIDE SINGLE SUPPLY RANGE (3V TO 16V) .OR DUAL SUPPLIES (± 1.5V TO± 8V)
·EXTREMELY LOW INPUT BIAS CURRENT : .1pATYP
 ·EXTREMELY LOW INPUT OFFSET .CURRENT : 1pATYP
· INPUT COMMON-MODE VOLTAGE RANGE .INCLUDESGND
·HIGH INPUT IMPEDANCE : 1012W TYP
·FAST RESPONSE TIME : 2ms TYP  FOR 5mV .OVERDRIVE
·PIN-TO-PIN AND FUNCTIONALLY COMPATIBLE WITH BIPOLAR LM393


Pinout

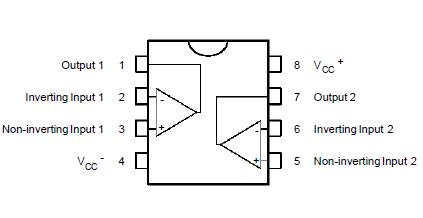

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC+
 Supply Voltage - (note 1)
18
V
Vid
 Differential Input Voltage - (note 2)
±18
V
Vi
 Input Voltage - (note 3)
18
V
VO
 Output Voltage
18
V
IO
 Output Current
20
mA
Toper
 Operating Free-Air Temperature Range
TS3702C
TS3702I
TS3702M
0 to +70
-40 to +125
-55 to +125
Tstg
 Storage Temperature Range
-65 to +150
Notes :
1. All voltage values, except differential voltage, are with respect to network ground terminal.
2. Differential voltages are the non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of the input and the output voltagesmust never exceed the magnitude of the positive supply voltage.
4. Short circuit from outputs to VCC + can cause excessive heating and eventual destruction.


Description

The TS3702I is a micropower CMOS dual voltage comparator with extremely low consumption of 9mA typ / comparator (20 times less than bipolar LM393). The push-pull CMOS output stage of TS3702I allows power and space saving by eliminating the external pull-up resistor required by usual open-collector output comparators.

Thus response times of TS3702I remain similar to the LM393.
