Features:

* Low Differential Gain and Phase
   (DG = 0.82%, DP = 0.1 Degree Typ)
* Wide Bandwidth (BW = 300 MHz Min)
* Low Crosstalk (XTALK = −80 dB Typ)
* Low Power Consumption
   (ICC = 10 µA Max)
* Bidirectional Data Flow, With Near-Zero
Propagation Delay
* Low ON-State Resistance (ron = 3 Ω Typ)
* Rail-to-Rail Switching on Data I/O Ports  (0 to VCC)
* VCC Operating Range From 3 V to 3.6 V
* Ioff Supports Partial-Power-Down Mode Operation
*Data and Control Inputs Provide
  Undershoot Clamp Diode
*Latch-Up Performance Exceeds 100 mA Per
  JESD 78, Class II
*ESD Performance Tested Per JESD 22
  −  2000-V Human-Body Model
     (A114-B, Class II)
  −  1000-V Charged-Device Model (C101)
*Suitable for Both RGB and
  Composite-Video Switching



Application

Audio
Automotive
Broadband
Digital Control
Military
Optical Networking
Security
Telephony
Video & Imaging
Wireless



Pinout

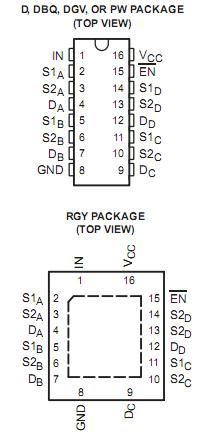

  Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . .  .  .  .  .  .  . .  −0.5 V to 4.6 V
Control input voltage range, VIN (see Notes 1 and 2)   . . −0.5 V to 4.6 V
Switch I/O voltage range, VI/O (see Notes 1, 2, and 3) . . −0.5 V to 4.6 V
Control input clamp current, IIK (VIN < 0)  . . . . . . . . . . . . . . . . . . −50 mA
I/O port clamp current, II/OK (VI/O < 0)  . . . . . . . . . . . . .  . . . . . . −50 mA
ON-state switch current, II/O (see Note 4)  . . . . . . . . . . . . . . . .±128 mA
Continuous current through VCC or GND terminals   . . . . . .  . . . ±100 mA
Package thermal impedance, JA (see Note 5): D package . . . . . 73°C/W
                                                   (see Note 5): DBQ package   . . .90°C/W
                                                   (see Note 5): DGV package  . . 120°C/W
                                                   (see Note 5): PW package  . .  .108°C/W
                                                   (see Note 6): RGY package. . . . .39°C/W
Storage temperature range, Tstg  . . . . . . . . . . . .  .. . . . .−65°C to 150°C






Description

    The TI TS3V330 video switch is a 4-bit 1-of-2 multiplexer/demultiplexer with a single switch-enable (EN) input. When EN is low, the switch is enabled and the D port is connected to the S port. When EN is high, the switch is disabled and the high-impedance state exists between the D and S ports. The select (IN) input controls the data path of the multiplexer/demultiplexer.

    Low differential gain and phase make this switch ideal for composite and RGB video applications. This device has wide bandwidth and low crosstalk, making it suitable for high-frequency applications as well.

    This TS3V330 is fully specified for partial-power-down applications using Ioff. The Ioff feature ensures that damaging current will not backflow through the device when it is powered down. This switch maintains isolation during power off.

    To ensure the high-impedance state of the TS3V330 during power up or power down, EN should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
