Product Details

Description



Features:

· LOW OFFSET VOLTAGE : 500mV max.
· LOW POWER CONSUMPTION
· SHORT CIRCUIT PROTECTION
· LOW DISTORTION, LOW NOISE
· HIGH GAIN-BANDWIDTH PRODUCT
· HIGH CHANNEL SEPARATION
· ESD INTERNAL PROTECTION


Pinout

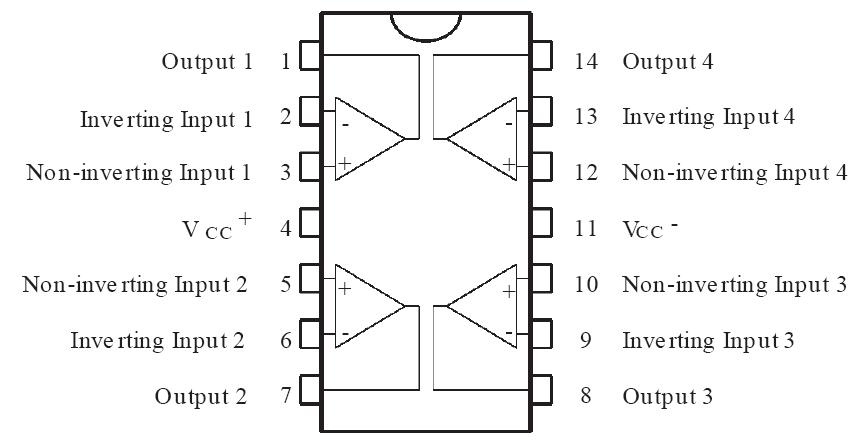

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage ±18 V
Vi Input Voltage(positive)
(negative)		 ±VCC
-VCC - 0.5
Vid Differential Input Voltage ±(VCC - 1)
Toper Operating Free-Air Temperature Range -40 to +125 °C
ptot Power Dissipation at Tamb = 70°C 1) 400 mW
Tstg Storage Temperature Range -65 to +150 °C



Description

The TS514A is a high performance quad operational amplifier with frequency and phase compensation built into the chip. The internal phase compensation allows stable operation as voltage follower in spite of its high gain-bandwidth products.

The circuit of the TS514A presents very stable electrical characteristics over the entire supply voltage range, and it particularly intended for professional and telecom applications (active filters, etc).
