Product Details

Description



Features:

· Specified Make-Before-Break Switching
· Low ON-State Resistance (1 )
· Control Inputs Are 5.5-V Tolerant
· Low Charge Injection
· Excellent ON-State Resistance Matching
· Low Total Harmonic Distortion (THD)
· 1.65-V to 5.5-V Single-Supply Operation
· Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
· ESD Performance Tested Per JESD 22
    − 2000-V Human-Body Model (A114-B, Class II)
    − 1000-V Charged-Device Model (C101)


Application

· Cell Phones
· PDAs
· Portable Instrumentation
· Audio and Video Signal Routing
· Low-Voltage Data Acquisition Systems
· Communication Circuits
· Modems
· Hard Drives
· Computer Peripherals
· Wireless Terminals and Peripherals


Pinout

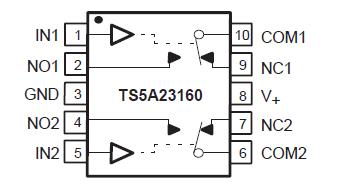

Connection Diagram


Specifications


MIN
MAX
UNIT
V+
 Supply voltage range(3)
-0.5
6.5
V
VNC
 Analog voltage range(3)(4)(5)
-0.5
V+ + 0.5
V
VNO
VCOM
IK
 Analog port diode current VNC, VNO, VCOM < 0 or VNC, VNO, VCOM > V+
-50
50
mA
INC
 On-state switch current)
-200
200
mA
INO
ICOM
 On-state peak switch current(6
-400
400
VI
 Digital input voltage range(3)(4)
-0.5
6.5
V
IIK
 Digital input clamp current
-50
mA
I+
 Continuous current through V+
100
mA
IGND
 Continuous current through GND
-100
100
mA
JA
 Package thermal impedance(7)
165
°C/W
Tstg
 Storage temperature range
-65
150
°C
(1) Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may degrade
     device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those
     specified is not implied.
(2) The algebraic convention, whereby the most negative value is a minimum and the most positive value is a maximum
(3) All voltages are with respect to ground, unless otherwise specified.
(4) The input and output voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
(5) This value is limited to 5.5 V maximum.
(6) Pulse at 1-ms duration < 10% duty cycle.
(7) The package thermal impedance is calculated in accordance with JESD 51-7.


Description

The TS5A23160 is a dual single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers a low ON-state
resistance and an excellent channel-to-channel ON-resistance matching. The TS5A23160 has excellent total harmonic distortion (THD) performance and consumes
very low power. These features make this device suitable for portable audio applications.
