Purchase TS904, In-stock TS904 From SeekIC.
Part Number: TS904
Description: The TS904 is a RAIL TO RAIL quad CMOS operational amplifier designed to operate with a single or dual ...
- Table of contents:
TS904
-
Suppliers
DataSheet
General Description
TS904 General Description
The TS904 is a RAIL TO RAIL quad CMOS operational amplifier designed to operate with a single or dual supply voltage. The input voltage range Vicm includes the two supply rails VCC + and VCC -The output reaches :
• VCC - +50mV VCC + -50mV with RL = 10kW
• VCC - +350mV VCC + -350mV with RL = 600W
This product offers a broad supply voltage operating range from 2.7V to 16V and a supply current of only 200mA/amp. (VCC = 3V)
Source and sink output current capability is typically 40mA (at VCC = 3V), fixed by an internal limitation circuit.
The TS904 offers two separate STANDBY pins
• STANDBY 1 acting on the n°2 and n°3 operators
• STANDBY 2 acting on the n°1 and n°4 operators
They reduce the consumption of the corresponding operators and put the outputs in a high impedance state. These two STANDBY pins should never stay not
connected.
STMicroelectronics is offering a quad op-amp with the same features : TS902.
TS904 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
Supply Voltage - (note 1) |
18 |
V |
|
Vid |
Differential Input Voltage - (note 2) |
±18 |
V |
|
Vi |
Input Voltage - (note 3) |
-0.3 to 18 |
V |
|
Iin |
Current on Inputs |
±50 |
mA |
|
Io |
Current on Outputs |
±130 |
mA |
|
Toper |
Operating Free Air Temperature Range TS904I/AI |
-40 to +125 |
|
|
Tstg |
Storage Temperature |
-65 to +150 |
1. All voltage values, except differential voltage are with respect to network ground terminal.
2. Differential voltages are the non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of input and output voltages must never exceed VCC + +0.3V.
TS904 Features
`RAIL TO RAIL INPUTAND OUTPUT .VOLTAGERANGES
`2 SEPARATESTANDBY : REDUCED CONSUMPTION (0.5A) ANDHIGH IMPED. ANCE OUTPUTS
`SINGLE (OR DUAL) SUPPLY OPERATION .FROM 2.7V TO 16V
`EXTREMELYLOW INPUT BIAS CURRENT : .1pA TYP .
`LOWINPUT OFFSET VOLTAGE : 5mVmax. .SPECIFIED FOR 600W AND 150W
`LOADS LOW SUPPLYCURRENT : 200mA/Ampli
`2 SEPARATESTANDBY : REDUCED CONSUMPTION (0.5A) ANDHIGH IMPED. ANCE OUTPUTS
`SINGLE (OR DUAL) SUPPLY OPERATION .FROM 2.7V TO 16V
`EXTREMELYLOW INPUT BIAS CURRENT : .1pA TYP .
`LOWINPUT OFFSET VOLTAGE : 5mVmax. .SPECIFIED FOR 600W AND 150W
`LOADS LOW SUPPLYCURRENT : 200mA/Ampli

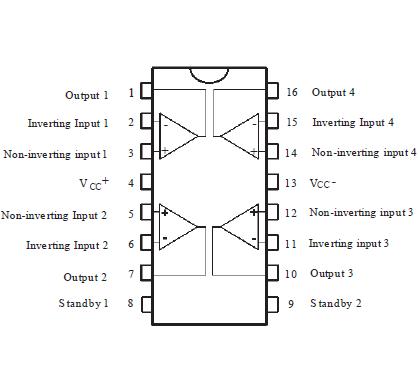

TS904 Connection Diagram
TS904
