Part Number: TS912
MFG: ST
Description: The TS912 is a RAIL TO RAIL CMOS dual operational amplifier designed to operate with a single or dual supply voltage.
- Table of contents:
TS912
-
Suppliers
DataSheet
General Description
TS912 General Description
The TS912 is a RAIL TO RAIL CMOS dual operational amplifier designed to operate with a single or dual supply voltage.
The input voltage range Vicm includes the two supply rails VCC + and VCC -. The output reaches :
• VCC - +40mV VCC + -50mV with RL = 10kW
• VCC - +350mV VCC + -350mV with RL = 600W
This product offers a broad supply voltage operating range from 2.7V to 16V and a supply current of only 200mA/amp. (VCC = 3V).
Source and sink output current capability is typically 40mA (at VCC = 3V), fixed by an internal limitation circuit.
STMicroelectronics is offering a quad op-amp with the same features : TS914.
TS912 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
Supply Voltage - (note 1) |
18 |
V |
|
Vid |
Differential Input Voltage - (note 2) |
±18 |
V |
|
Vi |
Input Voltage - (note 3) |
-0.3 to 18 |
V |
|
Iin |
Current on Inputs |
±50 |
mA |
|
Io |
Current on Outputs |
±130 |
mA |
|
Toper |
Operating Free Air Temperature Range TS912I/AI/BI |
-40 to +125 |
|
|
Tstg |
Storage Temperature |
-65 to +150 |
1. All voltage values, except differential voltage are with respect to network ground terminal.
2. Differential voltages are the non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of input and output voltages must never exceed VCC + +0.3V.
TS912 Features
`RAIL TO RAIL INPUT AND OUTPUT .VOLTAGERANGES
`SINGLE SUPPLY OPERATIONFROM 2.7V .TO 16V
`EXTREMELYLOW INPUT BIAS CURRENT : .1pA typ .
`LOWINPUT OFFSET VOLTAGE : 2mVmax. .
`SPECIFIED FOR 600W AND 100
`LOADS LOW SUPPLYCURRENT : 200mA/Ampli (VCC = 3V) ..
`ESD TOLERANCE : 3KV
`LATCH-UP IMMUNITY
`SINGLE SUPPLY OPERATIONFROM 2.7V .TO 16V
`EXTREMELYLOW INPUT BIAS CURRENT : .1pA typ .
`LOWINPUT OFFSET VOLTAGE : 2mVmax. .
`SPECIFIED FOR 600W AND 100
`LOADS LOW SUPPLYCURRENT : 200mA/Ampli (VCC = 3V) ..
`ESD TOLERANCE : 3KV
`LATCH-UP IMMUNITY

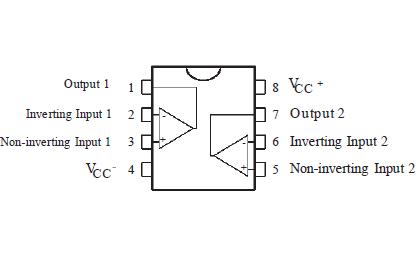

TS912 Connection Diagram
TS912
PDF/DataSheet Download
- Datasheet: TS912
- File Size: 104675 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
