Purchase TS931, In-stock TS931 From SeekIC.
Part Number: TS931
Description: The TS93x (Single, Dual & Quad) is Operational Amplifier able to operate with voltage as low as 2....
- Table of contents:
TS931
-
Suppliers
DataSheet
General Description
TS931 General Description
The TS93x (Single, Dual & Quad) is Operational Amplifier able to operate with voltage as low as 2.7V and to reach 2.9Vpp of output swing with RL = 100k when supplied @ 3V. Offering a typical consumption of only 20mA, it is particularly well-suited for every kind of battery-supplied applications.
The TS93x is housed in the space-saving 5 pins SOT23-5 package which simplifies the board design because of the ability to be placed everywhere (outside dimensions are : 2.8mm x 2.9mm).
TS931 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
Supply voltage 1) |
12 |
V |
|
Vid |
Differential Input Voltage 2) |
±12 |
V |
|
Vin |
Input Voltage Range 3) |
-0.3 to 12.3 |
V |
|
Toper |
Operating Free Air Temperature Range |
-40 to + 85 |
|
|
Tstd |
Storage Temperature Range |
-65 to +150 |
|
|
Tj |
Maximum Junction Temperature |
150 |
|
|
Rthjc |
Thermal Resistance Junction to Case 4) SOT23-5 DIP8 DIP14 SO8 SO14 TSSOP8 TSSOP14 |
81 42 32 28 22 26 21 |
/W |
|
Rthjc |
Thermal Resistance Junction to Ambient - SOT23-5 |
256 |
/W |
|
ESD |
Human Body Model |
2 |
KV |
| Latch-up Immunity |
Class A |
||
| Lead Temperature (soldering, 10sec) |
260 |
2. Differential voltages are non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of input and output voltages must never exceed VCC +0.3V.
4. Short-circuits can cause excessive heating and destructive dissipation.
TS931 Features
· RAIL TO RAIL OUTPUT VOLTAGE SWING
·MICROPOWER CONSUMPTION (20mA)
· SINGLE SUPPLY OPERATION (2.7V to 10V
· LOW OFFSET (2mV max for TS93xB)
· CMOS INPUTS
· ULTRA LOW INPUT BIAS CURRENT (1pA)
· ESD PROTECTION (2kV)
· LATCH-UP IMMUNITY (Class A)
· AVAILABLE IN SOT23-5 MICROPACKAGE
·MICROPOWER CONSUMPTION (20mA)
· SINGLE SUPPLY OPERATION (2.7V to 10V
· LOW OFFSET (2mV max for TS93xB)
· CMOS INPUTS
· ULTRA LOW INPUT BIAS CURRENT (1pA)
· ESD PROTECTION (2kV)
· LATCH-UP IMMUNITY (Class A)
· AVAILABLE IN SOT23-5 MICROPACKAGE
TS931 Typical Application
· Battery-powered systems
· Portable communication systems
· Alarm, smoke detectors
· Instrumentation & sensoring
· PH Meter
· Digital scales
· Portable communication systems
· Alarm, smoke detectors
· Instrumentation & sensoring
· PH Meter
· Digital scales

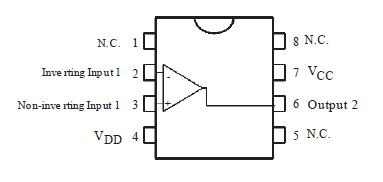

TS931 Connection Diagram
TS931
PDF/DataSheet Download
- Datasheet: TS931
- File Size: 132213 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
