Five Points

Part Number: TS942









Description: The TS94x (Single, Dual & Quad) is Operational Amplifier characterized for 2.7V to 10V operation o...


Urgent Purchase

TS942 General Description


The TS94x (Single, Dual & Quad) is Operational Amplifier characterized for 2.7V to 10V operation over -40°C to +85°C temperature range.

It is exhibiting an excellent consumption - 1.2mA, while featuring 10kHz gain bandwidth product, 1.5mA output capability and output Rail to Rail operation
- 2.85V typ@ 3V with RL=10k.

The TS94x Op-Amp is ideal for battery-powered systems, where very low supply current and output Rail to Rail are required. Its very low - 1pA typ input bias current and constant supply current over supply voltage enhance TS94x's performance near the end of the life battery charge.

TS942 Maximum Ratings

Symbol
 Parameter
Value
Unit
VCC
 Supply voltage 1)
12
V
Vid
 Differential Input Voltage 2)
±12
V
Vin
 Input Voltage Range 3)
-0.3 to 12.3
V
Toper
 Operating Free Air Temperature Range
-40 to + 85
Tstd
 Storage Temperature Range
-65 to +150
Tj
 Maximum Junction Temperature
150
Rthjc
 Thermal Resistance Junction to Case 4)
SOT23-5
DIP8
DIP14
SO8
SO14
TSSOP8
TSSOP14
81
42
32
28
22
26
21
/W
Rthjc
 Thermal Resistance Junction to Ambient - SOT23-5
256
/W
ESD
 Human Body Model
2
KV
  Latch-up Immunity
Class A
  Lead Temperature (soldering, 10sec)
260
1. All voltages values, except differential voltage are with respect to network terminal.
2. Differential voltages are non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of input and output voltages must never exceed VCC +0.3V.
4. Short-circuits can cause excessive heating and destructive dissipation.

TS942 Features

· RAIL TO RAIL OUTPUT VOLTAGE SWING
· MICROPOWER CONSUMPTION (1.2mA)
·SINGLE SUPPLY OPERATION (2.7V to 10V)
·CMOS INPUTS
· ULTRA LOW INPUT BIAS CURRENT (1pA)
· ESD PROTECTION (2kV)
· LATCH-UP IMMUNITY (Class A)
·AVAILABLE IN SOT23-5 MICROPACKAGE

TS942 Typical Application

· Battery-powered systems (Alarm)
· Portable communication systems (Pagers)
· Smoke/gas/fire detectors
· Instrumentation & sensoring
· PH Meter

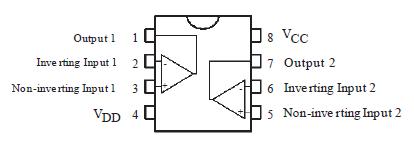

TS942 Connection Diagram

TS942 Connection Diagram

TS942 datasheet

TS942
PDF/DataSheet Download

  • Datasheet: TS942
  • File Size: 127405 KB
  • Manufacturer: STMICROELECTRONICS [STMicroelectronics]
  • Click here to Download
