Purchase TS951, In-stock TS951 From SeekIC.
MFG:ST D/C:08+
Part Number: TS951
MFG: ST
D/C: 08+
Description: The TS95x family are RAIL TO RAIL BiCMOS operational amplifiers optimized and fully specified for 3V a...
- Table of contents:
TS951
-
Suppliers
DataSheet
General Description
TS951 General Description
The TS95x family are RAIL TO RAIL BiCMOS operational amplifiers optimized and fully specified for 3V and 5V operation.
The TS951 is housed in the space-saving 5 pins SOT23 package that makes it well suited for battery- powered systems. This micropackage simplifies the PC board design because of it's ability to be placed in tight spaces (outside dimensions are : 2.8mmx 2.9mm)
TS951 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
Supply Voltage - note 1 |
12 |
V |
|
Vid |
Differential Input Voltage - note 2 |
±1 |
V |
|
Vin |
Input Voltage Range - note 3 |
-0.3 to 12.3 |
V |
|
Toper |
Operating Free Air Temperature Range |
-40 to +125 |
|
|
Tstg |
Storage Temperature Range |
-65 to +150 |
|
|
Tj |
Maximum Junction Temperation |
150 |
|
|
Rthjc |
Thermal Resistance Junction to Case - note 4 SOT23-5 SO8 SO14 TSSOP8 TSSOP14 |
81 28 22 26 21 |
/W |
|
Rthja |
Thermal Resistance Junction to Ambient - SOT23-5 |
256 |
/W |
|
ESD |
Human Body Model |
2 |
kV |
| Lead Temperature (soldering, 10sec) |
260 |
1. All voltages values, except differential voltage are with respect to network ground terminal.
2. Differential voltages are non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of input and output voltages must never exceed VCC +0.3V.
4. Short-circuits can cause excessive heating and destructive dissipation.
TS951 Features
·RAIL TO RAIL INPUT COMMON-MODE .VOLTAGERANGE .
·RAIL TO RAIL OUTPUT VOLTAGESWING .
·OPERATINGFROM 2.7V to 12V .
·HIGH SPEED (3MHz, 1V/ms) .
·LOWCONSUMPTION (0.9mA@ 3V) .
·SUPPLYVOLTAGE REJECTION RATIO : 80dB .
·ESD PROTECTION (2kV) .
·LATCH-UP IMMUNITY
· AVAILABLEIN SOT23-5 MICROPACKAGE
·RAIL TO RAIL OUTPUT VOLTAGESWING .
·OPERATINGFROM 2.7V to 12V .
·HIGH SPEED (3MHz, 1V/ms) .
·LOWCONSUMPTION (0.9mA@ 3V) .
·SUPPLYVOLTAGE REJECTION RATIO : 80dB .
·ESD PROTECTION (2kV) .
·LATCH-UP IMMUNITY
· AVAILABLEIN SOT23-5 MICROPACKAGE
TS951 Typical Application
·Set-top boxes .
·Laptop/Notebookcomputers .
·Transformer/Line drivers .
·Personal entertainments (CD players) .
·Portable communication (cell phones, pagers) .
·Instrumentation & sensoring .
·Digital to Analogconverter buffers
·Portable headphone speaker drivers
·Laptop/Notebookcomputers .
·Transformer/Line drivers .
·Personal entertainments (CD players) .
·Portable communication (cell phones, pagers) .
·Instrumentation & sensoring .
·Digital to Analogconverter buffers
·Portable headphone speaker drivers

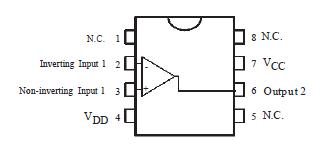

TS951 Connection Diagram
TS951
