Part Number: TS972
Description: The TS97x family operational amplifiers is able to operate with voltages as low as ±1.35V and featurin...
- Table of contents:
TS972
-
Suppliers
DataSheet
General Description
TS972 General Description
The TS97x family operational amplifiers is able to operate with voltages as low as ±1.35V and featuring output Rail to Rail signal swing. The TS97x boasts characteristics that make them particularly well suited for portable and battery-supplied equipment. Very low noise and low distortion character ist ics make them ideal for audio pre-amplification.
The TS971 is housed in the space-saving 5 pins SOT23 package which simplifies the board design because of the ability to be placed everywhere (outside dimensions are 2.8mm x 2.9mm)
TS972 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
Supply voltage 1) |
12 |
V |
|
Vid |
Differential Input Voltage 2) |
±VCC |
V |
|
Vin |
Input Voltage Range 3) |
-0.3 to 12.3 |
V |
|
Toper |
Operating Free Air Temperature Range |
-40 to + 125 |
|
|
Tstd |
Storage Temperature Range |
-65 to +150 |
|
|
Tj |
Maximum Junction Temperature |
150 |
|
|
Rthjc |
Thermal Resistance Junction to Case 4) SOT23-5 DIP8 DIP14 SO8 SO14 TSSOP8 TSSOP14 |
81 28 22 26 21 |
/W |
|
Rthjc |
Thermal Resistance Junction to Ambient |
256 |
/W |
|
ESD |
Human Body Model |
2 |
KV |
| Lead Temperature (soldering, 10sec) |
260 |
1. All voltages values, except differential voltage are with respect to network ground terminal.
2. Differential voltages are non-inverting input terminal with respect to the inverting input terminal.
3. The magniture of input and output voltages must never exceed VCC +0.3V.
4. Short-circuits can cause excessive heating and destructive dissipation.
TS972 Features
`RAIL TO RAIL OUTPUT VOLTAGESWING .(±2.4V@ VCC = ±2.5V) .
`VERYLOW NOISE LEVEL : 4nV HZ .
`ULTRA LOWDISTORTION : 0.003% .
`HIGHDYNAMIC FEATURES (12MHz, 4V/ms) .
`OPERATINGRANGE : 2.7V to 12V .ESD PROTECTION (2kV) .
`LATCH-UP IMMUNITY
`AVAILABLEIN SOT23-5 MICROPACKAGE
`VERYLOW NOISE LEVEL : 4nV HZ .
`ULTRA LOWDISTORTION : 0.003% .
`HIGHDYNAMIC FEATURES (12MHz, 4V/ms) .
`OPERATINGRANGE : 2.7V to 12V .ESD PROTECTION (2kV) .
`LATCH-UP IMMUNITY
`AVAILABLEIN SOT23-5 MICROPACKAGE
TS972 Typical Application
·Portable equipments (CD players, PDA) .
·Portable communications (cell phones, pagers) .
·Instrumentation& sensoring
·Professional audio circuits
·Portable communications (cell phones, pagers) .
·Instrumentation& sensoring
·Professional audio circuits

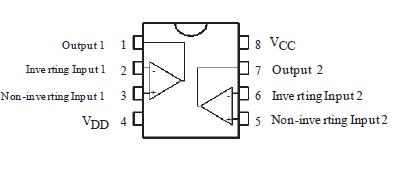

TS972 Connection Diagram
TS972
