Part Number: TS974









Description: The TS97x family operational amplifiers is able to operate with voltages as low as ±1.35V and featurin...


Urgent Purchase

TS974 General Description


The TS97x family operational amplifiers is able to operate with voltages as low as ±1.35V and featuring output Rail to Rail signal swing. The TS97x boasts characteristics that make them particularly well suited for portable and battery-supplied equipment. Very low noise and low distortion character ist ics make them ideal for audio pre-amplification.

The TS971 is housed in the space-saving 5 pins SOT23 package which simplifies the board design because of the ability to be placed everywhere (outside dimensions are 2.8mm x 2.9mm)

TS974 Maximum Ratings

Symbol
 Parameter
Value
Unit
VCC
 Supply voltage 1)
12
V
Vid
 Differential Input Voltage 2)
±VCC
V
Vin
 Input Voltage Range 3)
-0.3 to 12.3
V
Toper
 Operating Free Air Temperature Range
-40 to + 125
Tstd
 Storage Temperature Range
-65 to +150
Tj
 Maximum Junction Temperature
150
Rthjc
 Thermal Resistance Junction to Case 4)
SOT23-5
DIP8
DIP14
SO8
SO14
TSSOP8
TSSOP14
81
28
22
26
21
/W
Rthjc
 Thermal Resistance Junction to Ambient
256
/W
ESD
 Human Body Model
2
KV
  Lead Temperature (soldering, 10sec)
260
Notes:
1. All voltages values, except differential voltage are with respect to network ground terminal.
2. Differential voltages are non-inverting input terminal with respect to the inverting input terminal.
3. The magniture of input and output voltages must never exceed VCC +0.3V.
4. Short-circuits can cause excessive heating and destructive dissipation.

TS974 Features

`RAIL TO RAIL OUTPUT VOLTAGESWING .(±2.4V@ VCC = ±2.5V) .
`VERYLOW NOISE LEVEL : 4nV HZ .
`ULTRA LOWDISTORTION : 0.003% .
`HIGHDYNAMIC FEATURES (12MHz, 4V/ms) .
`OPERATINGRANGE : 2.7V to 12V .ESD PROTECTION (2kV) .
`LATCH-UP IMMUNITY
`AVAILABLEIN SOT23-5 MICROPACKAGE

TS974 Typical Application

·Portable equipments (CD players, PDA) .
·Portable communications (cell phones, pagers) .
·Instrumentation& sensoring
·Professional audio circuits

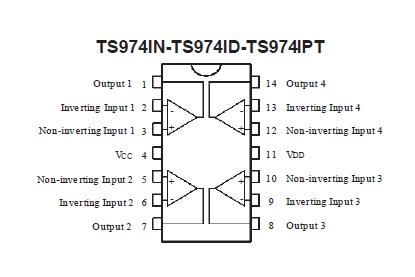

TS974 Connection Diagram

TS974 Connection Diagram

TS974 datasheet

TS974
PDF/DataSheet Download

  • Datasheet: TS974
  • File Size: 117047 KB
  • Manufacturer: STMICROELECTRONICS [STMicroelectronics]
  • Click here to Download
