Product Details

Description



Features:

ADJUSTABLE OUTPUT VOLTAGE : Vref to 32V
SINK CURRENT CAPABILITY : 1 to 100mA
1% and 0.4% VOLTAGE PRECISION
LACTH-UP IMMUNITY




Application

LOW SUPPLYCURRENT : 200mA/amp
MEDIUM SPEED : 2.1MHz
LOW LEVEL OUTPUT VOLTAGE CLOSE TO VCC - : 0.1V typ
INPUT COMMON MODE VOLTAGE RANGE INCLUDES GROUND

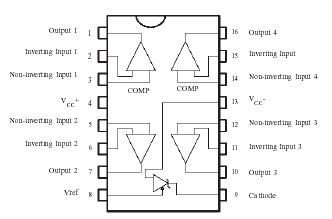

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage 36 V
Vid Differential Input Voltage 36 V
Vi Input Voltage -0.3 to +36 V
Toper Operating Free-air Temperature Range -40 to +125 oC
Tj Maximum Junction Temperature 150 oC
  Thermal Resistance Juction to Ambient (SO package) 150 oC/W



Description

The TSM102/A is a monolithic IC that includes two op-amps, two comparators and a precision voltage reference. The TSM102/A is offering space and cost saving in many applications like powersupply management or data acquisition systems.
