Product Details

Description



Features:

·High performance CMOS technology
·Low power consumption ( VDD = 2.0 ∼ 3.3 V )
·TT6221-1 : 32 function keys and 3 double action keys
   and 64 + 6 function codes are available ( Using D7 pin )
·TT6222-1 : 64 function keys and 3 double action keys
   and 128 + 6 function codes are available ( Using D7 pin )
·PPM ( Pulse Position Modulation ) code method
·Ceramic resonator frequence 455 KHz
·DOUT with a 38 KHz carrier for IR medium
·Custom codes can be selected ( Using external diodes and resistors )



Pinout

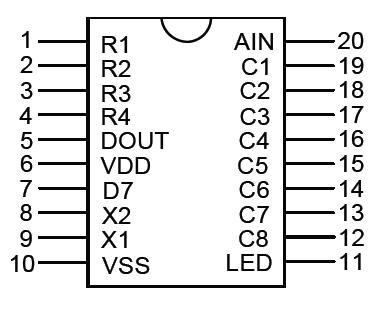

  Connection Diagram


Specifications

ITEM DECRIPTION
SYMBOL
RATINGS
UNIT
Supply voltage
VDD
2.0 ∼ 3.3
V
Operating temperature
Topr
-20 ∼ 70
Storage temperature
Tstg
-50 ∼ 125



Description

TT6221-1 and TT6222-1 are high performance remote control transmitter COMS IC,it is specially designed for use on infrared remote control applications. The custom codes (Max.) of TT6221-1 and TT6222-1 are available by setting external diodes and resistors. The transmission code consists of " leader pulse "," 16 bits custom code " and " 16 bits data code .
