Product Details

Description



Features:

 Suitable for analog and digital terrestrial TV tuner
Full ESD protection


Application

 The IC is suitable for PAL tuner in TV- and VCR-sets or set-top receivers for analog TV and Digital Video Broadcasting.

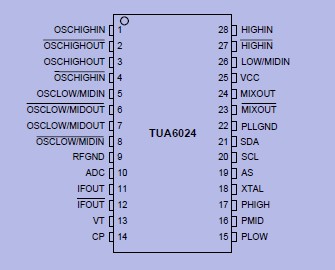

Pinout

Connection Diagram


Specifications

Parameter1 Symbol

Limit Values

 Unit Remarks
min. max.
Supply voltage VCC -0.3 6 V
Junction temperature TJ   +150
Storage temperature TStg -40 +125
Thermal resistance
(junction to ambient)		 RthSA   120 K/W



Description

The TUA6024 is a 5 V mixer/oscillator and sythesizer for analog and digital TV and VCR tuners.
