Product Details

Description

Features:

· Suitable for analog tuners and for digital CATV tuners
· Compatible with TUA6024-S and TUA6024-K in normal mode
· New features in extended mode
· Full ESD protection
· High impedance mixer input for LOW/MID band
· Low impedance mixer input for HIGH band
· 4 pin oscillator for LOW/MID band
· 4 pin oscillator for HIGH band
· balanced SAW preamplifier
· Low output impedance
· PLL with short lock-in time
· High voltage VCO tuning output
· Fast I²C bus
· 3 NPN bandswitch buffers
· Internal LOW-MID/HIGH switch
· Lock-in flag
· Power-down reset
· 4 programmable reference divider ratios: 24, 64, 80, 128
· 4 programmable charge pump currents

Application

· The IC is suitable for PAL tuners in TV- and VCR-sets or CATV set-top receivers for analog TV and digital cable TV.

Pinout

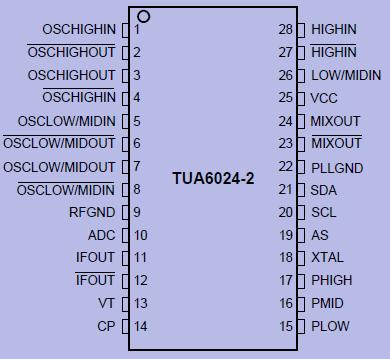

Connection Diagram

Specifications

Parameter ¹⁾	Symbol	Limit Values		Unit	Remarks
Parameter ¹⁾	Symbol	min	max	Unit	Remarks
Supply voltage	V_CC	-0.3	6	V
Ambient temperature	T_A	-10	TAmax^2).
Junction temperature	T_J		+125
Storage temperature	T_Stg	-40	+125
Temperature difference junction to case ^3).	T_JC		2	K
CP	V_CHGPMP	-0.3	3	V
CP	I_CHGPMP		3	mA
Crystal oscillator pin XTAL	V_XTAL		V_CC	V
Crystal oscillator pin XTAL	I_XTAL	-5		mA
Bus input/output SDA	V_SDA	-0.3	6	V
Bus output current SDA	I_SDA(L)		5	mA	open collector
Bus input SCL	V_SCL	-0.3	6	V
Chip address switch AS	V_AS	-0.3	V_CC	V
VCO tuning output (loop filter)	V_T	-0.3	35	V
ADC input	V_ADC	-0.3	V_CC	V
Port outputs PLOW, PMID, PHIGH	V_P	-0.3	V_CC	V
Port outputs PLOW, PMID, PHIGH	I_P(L)		25	mA	t_max = 0.1 sec. at 5.5 V
Total port output current	I_P(L)		40	mA	t_max = 0.1 sec. at 5.5 V
Mix input LOW/MID	V_i	-0.3	3	V
Mix inputs HIGH	V_i		2	V
Mix inputs HIGH	I_i	-5	6	mA
VCO base voltage	V_B	-0.3	3	V
VCO collector voltage	V_C		V_CC	V
all pins	V_ESD			kV
			2

1). All values are referred to ground (pin), unless stated otherwise.Currents with a positive sign flows into the pin and currents with a negative sign flows out of pin.
2).The maximum ambient temperature depends on the mounting conditions of the package. Any application mounting must guarantee not to exceed the maximum junction temperature of 125 °C. As reference the temperature difference junction to case is given.
3).Referred to top center of package
4). According to EIA/JESD22-A114-B (HBM incircuit test), as a single device incircuit contact discharge test.

Description

The TUA60242 device combines a digitally programmable phase locked loop (PLL), with a mixer-oscillator block including two balanced mixers and oscillators for use in TV and VCR tuners.

The PLL block with four selectable chip addresses forms a digitally programmable phase locked loop. With a 4 MHz quartz crystal, the PLL permits precise setting of the frequency of the tuner oscillator up to 1024 MHz in increments of 31.25, 50, 62.5 or 166.7 kHz. The tuning process is controlled by a microprocessor via an I2C bus. The device has three output ports. A flag is set when the loop is locked. It can be read by the processor via the I²C bus.

The mixer-oscillator block includes two balanced mixers (one mixer with highimpedance input and one mixer with a balanced low-impedance input), two frequency and amplitude-stable balanced oscillators for LOW/MID and HIGH, an
IF amplifier, a low-noise reference voltage source, and a band switch.
