TUSB2043

Features: ` Universal Serial Bus (USB) Version 1.1 Compliant` 32-Pin TQFP Package With a 0.8 mm Pin Pitch` 3.3-V Low Power ASIC Logic` Integrated USB Transceivers` State Machine Implementation Requires No Firmware Programming` One Upstream Port and Four Downstream Ports` All Downstream Ports Suppo...

product image

TUSB2043 Picture
See larger image
SeekIC No. : 004533850 Detail

TUSB2043: Features: ` Universal Serial Bus (USB) Version 1.1 Compliant` 32-Pin TQFP Package With a 0.8 mm Pin Pitch` 3.3-V Low Power ASIC Logic` Integrated USB Transceivers` State Machine Implementation Requi...

TUSB2043 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TUSB2043
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Universal Serial Bus (USB) Version 1.1 Compliant
` 32-Pin TQFP Package With a 0.8 mm Pin Pitch
` 3.3-V Low Power ASIC Logic
` Integrated USB Transceivers
` State Machine Implementation Requires No Firmware Programming
` One Upstream Port and Four Downstream Ports
` All Downstream Ports Support Full-Speed and Low-Speed Operations
` Two Power Source Modes Self-Powered Mode Bus-Powered Mode
` Power Switching and Over-Current Reporting is Provided Ganged or Per Port
` Supports Suspend and Resume Operations
` Supports Programmable Vendor ID and Product ID With External Serial EEPROM
` 3-State EEPROM Interface Allows EEPROM Sharing
` Push-Pull Outputs for PWRON Eliminate the Need for External Pullup Resistors
` Noise Filtering on OVRCUR Provides Immunity to Voltage Spikes
` Package Pinout Allows 2-Layer PCB
` Migrated From Proven TUSB2040 Hub
` Lower Cost Than the TUSB2040 Hub


Pinout

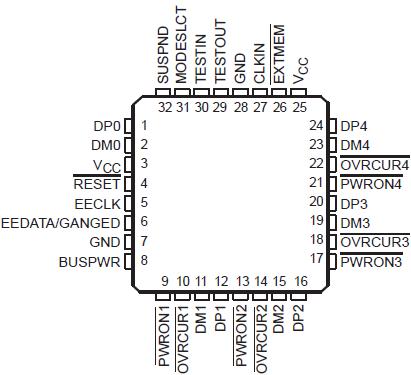

Connection Diagram


Specifications

Supply voltage range, VCC (see Note 1) . . . . . . . . . . . . . . . . . . 0.5 V to 3.6 V
Input voltage range, VI . . . . . .  . . . . . . . . . . .. . . . . .. . . 0.5 V to VCC + 0.5 V
Output voltage range, VO . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VCC + 0.5 V
Input clamp current, IIK, (VI < 0 V or VI > VCC) . . . . . . . . . . . . . . . . . . . ±20 mA
Output clamp current, IOK, (VO < 0 V or VO > VCC) . . . . . . . . . . . . . . . . ±20 mA
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . 65 to 150
Operating free-air temperature range, TA . . . . . . . . . . . .  . . . . . . . . . 0to 70
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: All voltage levels are with respect to GND.


Description

The TUSB2043 is a 3.3 V CMOS hub device that provides one upstream port and four downstream ports in compliance with the 1.1 Universal Serial Bus (USB) specification. Because this device is implemented with a digital state machine instead of a microcontroller, no firmware programming is required. Fully compliant USB transceivers are integrated into the ASIC for all upstream and downstream ports. The downstream ports support both full-speed and low-speed devices by automatically setting the slew rate according to the speed of the device attached to the ports. The configuration of the BUSPWR pin selects either the bus-powered or the self-powered mode
