TX5003

Packaging : Reel
Type : Transmitter
Operating Supply Voltage : 2.5 V, 3.3 V
Package / Case : SM-20L
Operating Frequency : 304.025 MHz


Features:

·Designed for Short-Range Wireless Data Communications
·Supports RF Data Transmission Rates Up to 115.2 kbps
·3 V, Low Current Operation plus Sleep Mode
·Stable, Easy to Use, Low External Parts Count

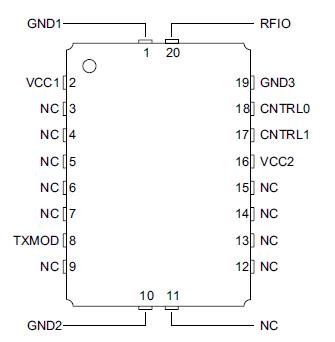

Pinout






Specifications

Characteristic Symbol Minimum Typical Maximum Units Operating Frequency fo 303.625 304.025 MHz Modulation Types OOK & ASK OOK Data Rate 10 kbps ASK Data Rate 115.2 kbps Transmitter Performance Peak RF Output Power 250 uA TXMOD Current PO 1.5 dBm Peak Current 250 uA TXMOD Current ITP 9.5 mA OOK Turn On/Turn Off Times tON/tOFF 20/15 us ASK Output Rise/Fall Times tTR/tTF 1.1/1.1 us 2nd - 4th Harmonic Outputs -50 dBm 5th - 10th Harmonic Outputs -55 dBm Non-harmonic Spurious Outputs -50 dBm Sleep Mode Current IS 0.7 uA Sleep to Transmit Switch Time tTOR 21 us Transmit to Sleep Switch Time tRTO 15 us Control Input Logic Low Level 200 mV Control Input Logic High Level Vcc - 300 mV Power Supply Voltage Range VCC 2.2 3.7 Vdc Operating Ambient Temperature TA -40 +85 C

Rating	Value	Units
Power Supply and All Input/Output Pins	-0.3 to +4.0	V
Non-Operating Case Temperature	-50 to +100
Soldering Temperature (10 seconds)	250

Description

TX5003: Designed for Short-Range Wireless Data Communications Supports RF Data Transmission Rates Up to 115.2 kbps 3 V, Low Current Operation plus Sleep Mode Stable, Easy to Use, Low External Parts Count Complies with Directive 2002/95/EC (RoHS)
