Product Details

Description



Features:

· 622 Mbits/s data input, both Current-Mode Logic (CML) and Positive Emitter Coupled Logic (PECL) compatible;maximum 800 mV (p-p)
· Adaptive laser output control with dual loop, stabilizing optical ONE and ZERO levels
· Optional external control of laser modulation and biasing currents (non-adaptive)
· Automatic laser shutdown
· Few external components required
· Rise and fall times of 120 ps (typical value)
· Jitter <50 mUI (p-p)
· RF output current sinking capability of 60 mA
· Bias current sinking capability of 90 mA
· Power dissipation of 430 mW (typical value)
· Low cost LQFP32 plastic package
· Single 5 V power supply.


Application

· SDH/SONET STM4/OC12 optical transmission systems
· SDH/SONET STM4/OC12 optical laser modules


Pinout

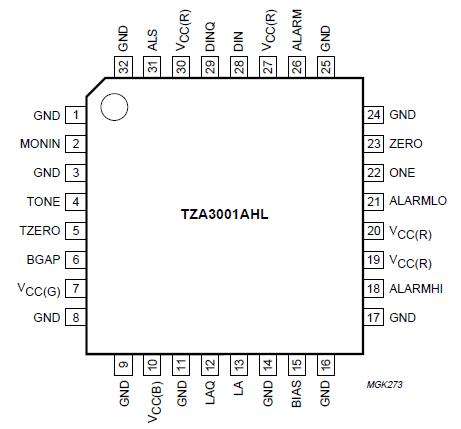

Connection Diagram


Specifications

SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT

VCC

 supply voltages   -0.5 +6 V
Vn DC voltage on
pin MONIN
pins TONE and TZERO
pin BGAP
pin BIAS
pins LA and LAQ
pin ALS
pins ONE and ZERO
pins DIN and DINQ
pin ALARM
pins ALARMHI and ALARMLO
pins DLOOP and DLOOPQ
pin ENL









TZA3001AHL
TZA3001AHL
TZA3001BHL
TZA3001BHL
1.3
-0.5
-0.5
-0.5
1.3
-0.5
-0.5
-0.5
-0.5
-0.5
-0.5
-0.5
VCC + 0.5
VCC + 0.5
+3.2
VCC + 0.5
VCC + 0.5
VCC + 0.5
VCC + 0.5
VCC + 0.5
VCC + 0.5
VCC + 0.5
VCC + 0.5
VCC + 0.5
V
V
V
V
V
V
V
V
V
V
V
V
In DC current on
pin MONIN
pins TONE and TZERO
pin BGAP
pin BIAS
pins LA and LAQ
pin ALS
pins ONE and ZERO
pins DIN and DINQ
pin ALARM
pins ALARMHI and ALARMLO
pins DLOOP and DLOOPQ
pin ENL










TZA3001AHL
TZA3001AHL
TZA3001BHL
TZA3001BHL
-0.5
-0.5
-2.0
-0.5
-0.5
-0.5
-0.5
-0.5
-0.5
-0.5
-0.5
-0.5


+2.5
+0.5
+2.5
+200
+100
+0.5
+0.5
+0.5
+10
+0.5
+0.5
+0.5


mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA

Tamb ambient temperature   -40 +85 °C
Tj junction temperature   -40 +125 °C
Tstg storage temperature   -65 +150 °C



Description

The TZA3001AHL, TZA3001BHL and TZA3001U are fully integrated laser drivers for STM4/OC12 (622 Mbits/s) systems, incorporating the RF path between the datamultiplexer and the laser diode. Since the dual loop bias and modulation control circuits are integrated on the IC,the external component count is low. Only decoupling capacitors and adjustment resistors are required.

The TZA3001AHL features an alarm function for signalling extreme bias current conditions. The alarm low and high threshold levels can be adjusted to suit the application using only a resistor or a current Digital-to-Analog Converter (DAC).

The TZA3001AHL is provided with an additional RF data input to facilitate remote (loop mode) system testing.

The TZA3001U is a bare die version for use in compact laser module designs. The die contains 40 pads and features the combined functionality of the TZA3001AHL and the TZA3001BHL.
