Features:

` 3 channels, high bandwidth (90 MHz @ 3 dB)
` Matched attenuators for contrast control
` Black-level clamping for brightness control
` Independent gain control of each amplifier
` ESD protection according to MIL-STD. 883

Pinout

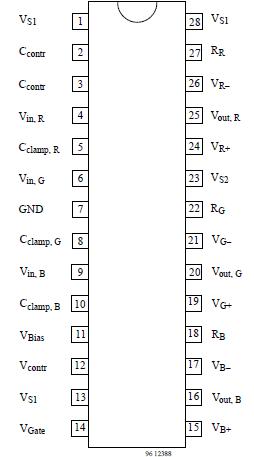

Connection Diagram

Specifications

Parameters	Symbol	Value	Unit
Supply voltage Pins 1, 13, 28 and 23	V_S	13.5	V
Input voltage at all other pins	V_in	0 toVS	V
Video output current Pins 16, 20 and 25	I_V	28	mA
Junction temperature	T_j	125	°C
Storage temperature range	T_stg	40 to 125	°C

Description

The U2203B-A is a wideband video amplifier IC system especially designed for use in high-resolution RGB monitors. The U2203B IC includes three well matched video amplifiers, three gated differential amplifiers for black level clamping and brightness control and the function for simultaneously contrast control. Separate adjustment of the maximum gain of each channel is also possible.
