Product Details

Description

Features:

· FM wideband AGC
· LO-buffer for digital tuning
· Integrated stop signal generation with true AM/ FM discriminators
· Adjustable stop signal sensitivity
· Automatic stereo-mono-blend
· High cut
· Mute function
· Pilot canceller
· Supply voltage range 3 to 12 V
· Package: SSO28

Pinout

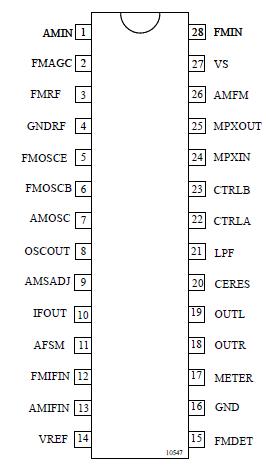

Connection Diagram

Specifications

Parameters	Symbol	Value	Unit
Supply voltage	V_S, V_Batt	12	V
Power dissipation	P	750	mW
External reference current to GND	ILoad	3	mA
Junction temperature	Tj	+125	°C
Storage temperature	Tstg	-25 to +125	°C
Ambient temperature	T_amb	30 to +85	°C
Electrostatic handling	±VESD	2000	V

Description

The U2514B is an integrated bipolar radio suitable for digital tuning systems. It contains a FM front end with pre-amplifier and FM-stereo decoder as well as a complete AM receiver and demodulator. Stop-signal generation is implemented for FM and AM mode. This circuit is designed for use in small radios, power packs and multimedia applications
