U2730B-B

Features: Supply voltage: 8.5 V RF frequency range: 1400 MHz to 1550 MHz IF frequency range: 150 MHz to 250 MHz Overall IM3 rejection: > 40 dB Overall gain control range: typ. 30 dB DSB noise figure: 9.5 dB Gain-controlled amplifier Gain-controlled L-band mixer On-chip gain-control circuitry On...

product image

U2730B-B Picture
See larger image
SeekIC No. : 004534726 Detail

U2730B-B: Features: Supply voltage: 8.5 V RF frequency range: 1400 MHz to 1550 MHz IF frequency range: 150 MHz to 250 MHz Overall IM3 rejection: > 40 dB Overall gain control range: typ. 30 dB DSB noise fig...

U2730B-B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U2730B-B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Supply voltage: 8.5 V
RF frequency range: 1400 MHz to 1550 MHz
IF frequency range: 150 MHz to 250 MHz
Overall IM3 rejection: > 40 dB
Overall gain control range: typ. 30 dB
DSB noise figure: 9.5 dB
Gain-controlled amplifier
Gain-controlled L-band mixer
On-chip gain-control circuitry
On-chip VCO, typical frequency 1261.568 MHz
Internal VCO can be overdriven by an external LO
On-chip frequency synthesizer
  Fixed LO divider factor: 2464
  Four reference divider factors selectable: 32, 35, 36, 48
  Tristate phase detector with programmable charge pump
  De-activation of tuning output programmable
  Lock-status indication
  Test interface

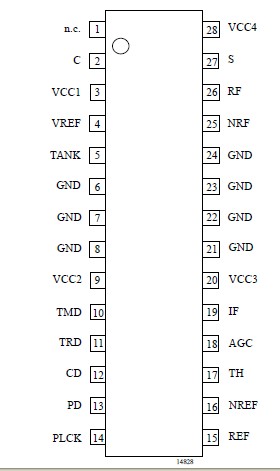

Pinout

Connection Diagram


Specifications

Parameters Symbol Value Unit
Supply voltage Pins 3, 9, 20 and 28 VCC 0.3 to +9.5 V
RF input voltage Pins 25 and 26 VRF 750 mVpp
Voltage at Pin AGC Pin 18 VAGC 0.5 to 6 V
Voltage at Pin TH Pin 17 VTH 0.3 to +4.0 V
Input voltage at Pin TANK
(internal oscillator overdriven) Pin 5		 VTANK 1 Vpp
Current at IF output Pin 19 IIF 4.0 mA
Reference input voltage (diff.) Pins 15 and 16 REF, NREF 1 Vpp
Control input voltage Pins 1, 2 and 27 C, S 0.3 to +9.5 V
PLCK output current Pin 14 IPLCK 0.5 mA
PLCK output voltage Pin 14 VPLCK 0.3 to +5.5 V
Junction temperature Tj 125 °C
Storage temperature Tstg 40 to +125 °C



Description

The U2730B-B is a monolithic integrated L-band downconverter circuit fabricated in TEMIC's advanced UHF5S technology. Combining the functionality of U2754B-B and U2755B-B in one integrated circuit, it covers all functions of an L-band down-converter in a DAB receiver. The U2730B-B includes a gain-controlled amplifier, a gain-controlled mixer, an output buffer, a gain-control block, an L-band oscillator and a complete frequency syntheziser unit. The frequency syntheziser block U2730B-B consists of an input buffer for the reference frequency signal, a reference divider, an LO divider, a tri-state phase detector, a loop filter amplifier, a lock detector, a programmable charge pump, a test interface and a control interface.

Electrostatic sensitive device. Observe precautions for handling.
